Descriere

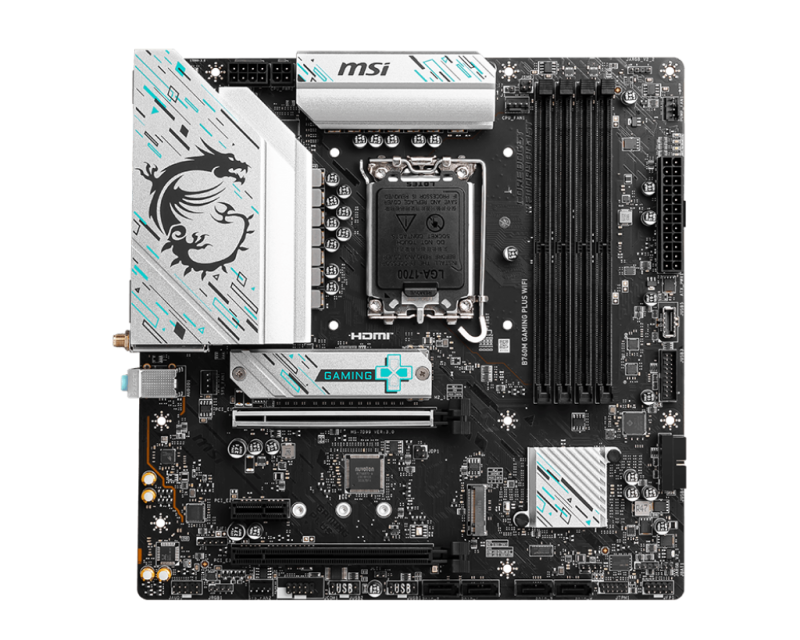

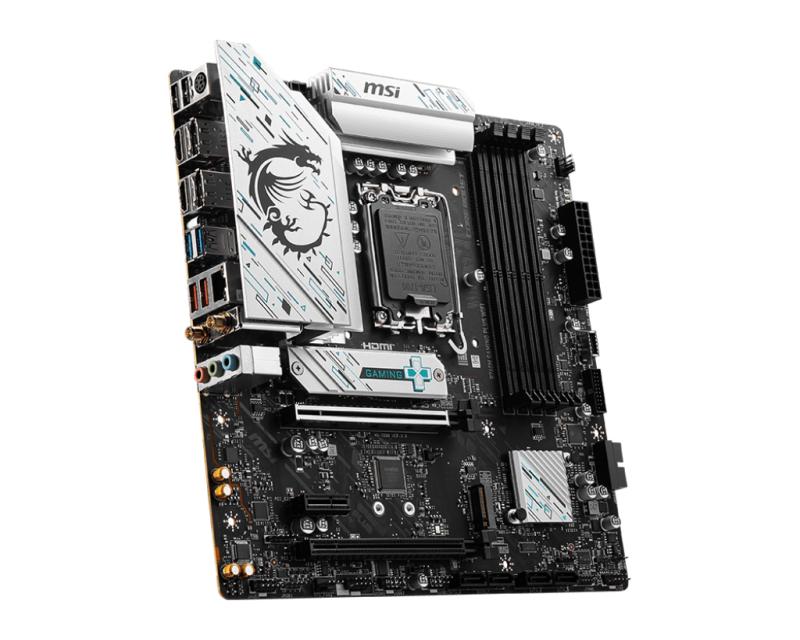

Placa de Baza MSI B760M GAMING PLUS WIFI LGA1700, 4x DDR5, 2x HDMI 2x DP, 2x PCIE x16 1x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX
Caracteristici
Acpi Version:
- 6.4
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.3
Brand:
- MSI
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel® Celeron®, Intel® Pentium® Gold
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 243.8 mm
Displayport Version:
- 1.4
Displayports Quantity:
- 2
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdmi Ports Quantity:
- 2
Hdmi Version:
- 2.1
Maximum Internal Memory:
- 192 GB
Maximum Number Of Smp Processors:
- 1
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Onboard-cpu:
- No
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 2
Pci-ex1:
- 1
Pci-ex16:
- 2
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
- MSI
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 6800 MHz
Supported Memory Clock Speeds:
- 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, SATA III
System Management Bios (smbios) Version:
- 3.5
Top Wi-fi Standard:
- Wi-Fi 6E (802.11ax)
Tpm Connector:
- Yes
Usb 2.0 Connectors:
- 4
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Width:
- 243.8 mm
Windows Operating Systems Supported:
- Windows 10, Windows 11
