Descriere

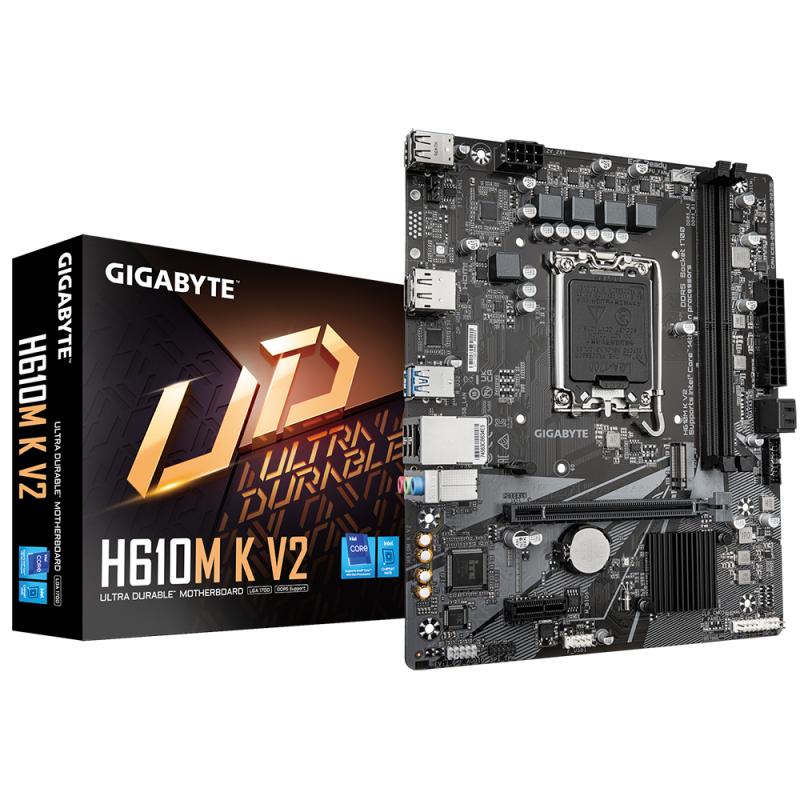

Placa de bază Gigabyte H610M K V2 este soluția ideală pentru construirea unui sistem performant și compact. Proiectată pe format MATX, aceasta oferă suport pentru memorie DDR5, asigurând viteze rapide și eficiență energetică. Conectorii HDMI și DisplayPort permit o experiență vizuală deosebită, perfectă pentru gaming sau muncă. Cu multiple sloturi PCIe și M.2, extinderea capacităților sistemului devine simplă și rapidă. Alege H610M K V2 pentru un echilibru perfect între performanță și funcționalitate în orice configurație.
Caracteristici
1st M.2 Highest Pci Express Generation:
- 3.0
1st M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Brand:
- GIGABYTE
Clear Cmos Jumper:
- Yes
Component For:
- PC
Cooling Type:
- Passive
Cpu Fan Connector:
- Yes
Depth:
- 185 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 1.2
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8111H
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel H610
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Cpu Fan Connectors:
- 1
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 2
Number Of M.2 (m) Slots:
- 1
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 2
Number Of Storage Drives Supported:
- 3
Onboard-cpu:
- No
Package Depth:
- 235 mm
Package Height:
- 52 mm
Package Weight:
- 723 g
Package Width:
- 265 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
- Gigabyte
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Ram-slots:
- 2
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 5600 MHz
Supported Memory Clock Speeds:
- 5600,5200,4800,4400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, PCI Express 3.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 650 g
Wi-fi:
- No
Width:
- 226 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
