Descriere

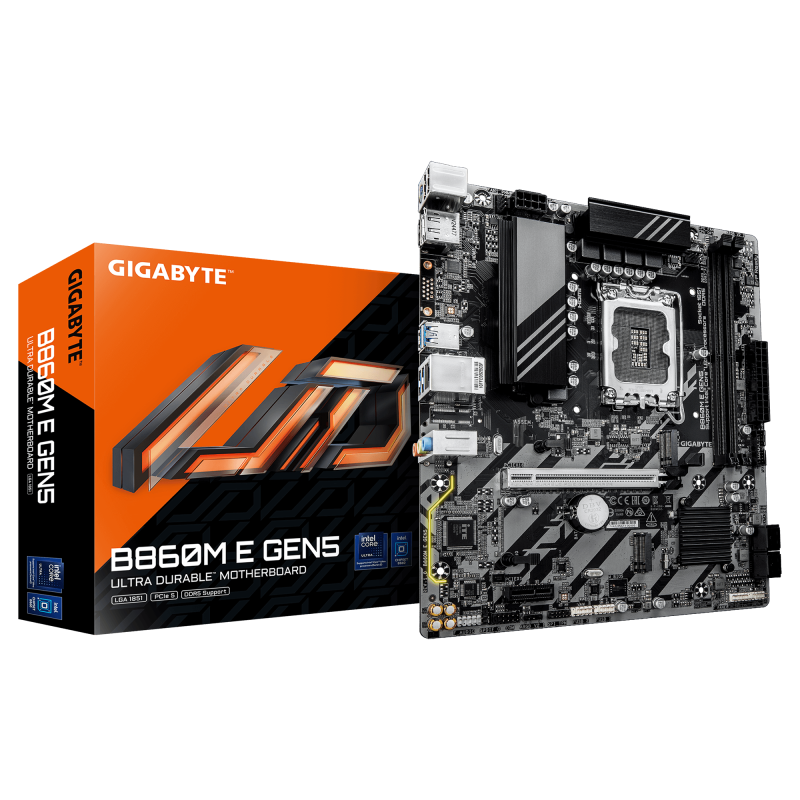

Placa de bază Gigabyte B860M E Gen5 este o alegere excelentă pentru utilizatorii care doresc să își construiască un sistem de calcul performant și fiabil. Cu suport pentru cele mai recente versiuni de Windows și o configurare versatilă a sloturilor M.2, această placă oferă posibilități extinse de upgrade. Datorită tehnologiei avansate de gestionare a energiei și a soluției audio de 7.1 canale, este ideală atât pentru gaming, cât și pentru aplicații multimedia. Designul său compact și eficient o face potrivită pentru orice carcasă de PC modernă.
Caracteristici
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Capacity:
- 220 mAh
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Brand:
- GIGABYTE
Bundled Software:
- Norton®Internet Security (OEM version)
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cooling Type:
- Passive
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 215 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdcp Version:
- 2.3
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8111H
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B860
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 1
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Number Of Water Pump Connectors:
- 2
Package Depth:
- 265 mm
Package Height:
- 54 mm
Package Weight:
- 988 g
Package Width:
- 265 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
- Gigabyte
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
Screws Included:
- Yes
Serial Port Headers:
- 1
Supported Memory Clock Speed (max):
- 8800 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, PCI Express 4.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 910 g
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
