Descriere

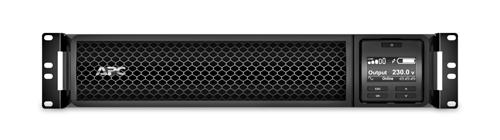

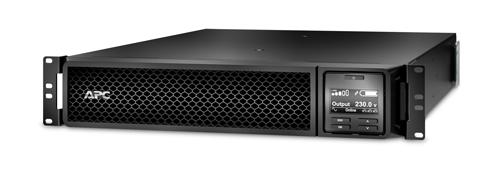

APC Smart-UPS SRT 3000VA RM 230V
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card
Output power capacity
2.7kWatts / 3.0kVA
Rack Height
2U
Output Connections
(8) IEC 320 C13 (Battery Backup)
(8) IEC 60320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
(2) IEC 60320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Cord Length
2.7kWatts / 3.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Caracteristici
Brand:
- APC
Capacitate Putere Ups:
- ≥1501W
Capacitate Rack:
- 3U
Ecran Lcd:
- Da
Form Factor::
- Rackmount
Management Ups:
- Yes
Montare In Rack:
- Yes
Output Power Capacity:
- 3 kVA
Producator:
- Apc
Tip Ups:
- Online
Tip Ups::
- Online
Ups Topology:
- Double-conversion (Online)
Waveform:
- Sine
