Descriere

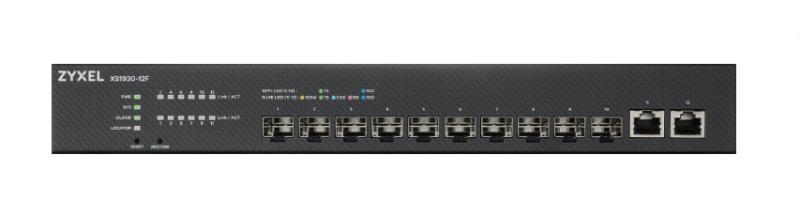

XS1930-12F, 10-port 10G Smart Managed Fiber Switch, 2 Multi-Gigabit Ports
Caracteristici
10g Support:
- Yes
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Brand:
- ZYXEL
Broadcast Storm Control:
- Yes
Configuring Location Settings (cli):
- Yes
Depth:
- 337 mm
Dhcp Features:
- DHCP client, DHCP relay
Ethernet Lan Data Rates:
- 1000,2500,5000,10000 Mbit/s
Flash Memory:
- 32 MB
Flow Control Support:
- Yes
Forwarding Rate:
- 178.5 Mpps
Harmonized System (hs) Code:
- 85176990
Heat Dissipation:
- 84.91 BTU/h
Height:
- 79 mm
Igmp Snooping:
- Yes
Installed Sfp+ Modules Quantity:
- 0
Internal Memory:
- 256 MB
Jumbo Frames:
- 12000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 16000 entries
Management:
- Managed
Mib Support:
- Y
Montare In Rack:
- Da
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z
Numar Porturi:
- 24
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 5 - 95%
Operating Temperature (t-t):
- -20 - 50 °C
Packet Buffer Memory:
- 2 MB
Poe:
- Nu
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (max):
- 24.9 W
Power Over Ethernet (poe):
- No
Power Source:
- AC
Product Colour:
- Black
Proprietati:
- Layer 3
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- Yes
Redundant Psu:
- Nu
Security Algorithms:
- HTTPS, SHA-2, SSL/TLS
Sfp Module Slots Quantity:
- 10
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stacabil:
- Nu
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L2+/L3
Switch Type:
- Managed
Switching Capacity:
- 240 Gbit/s
Vlan Support:
- Yes
Web-based Management:
- Yes
Weight:
- 3.63 kg
Width:
- 484 mm
