Descriere

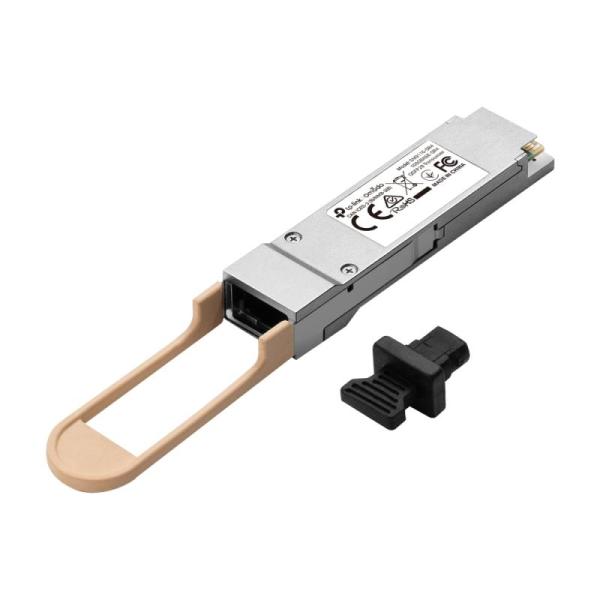

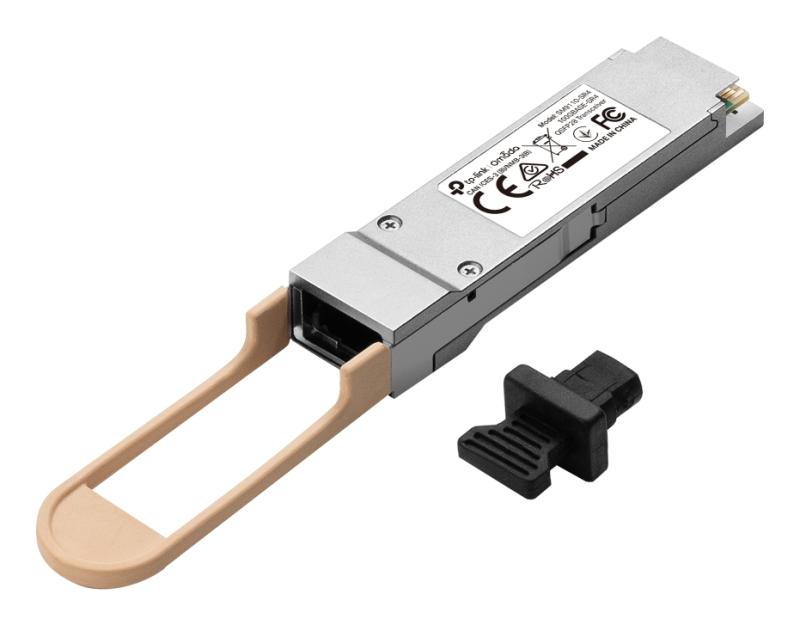

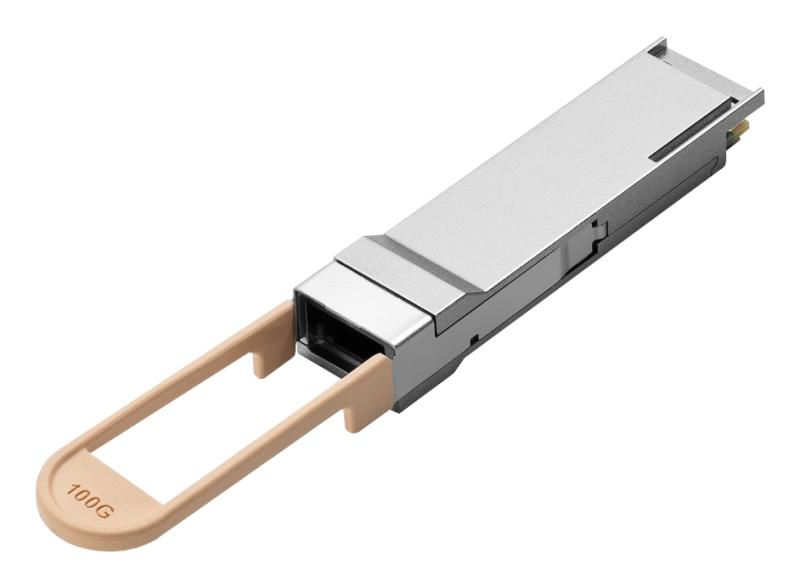

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable
Caracteristici
Brand:
- TP-LINK
Certification:
- QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Country Of Origin:
- China
Data Transfer Rate:
- 100000 Mbit/s
Depth:
- 18.4 mm
Digital Diagnostics Monitoring (ddm):
- Yes
Ethernet Interface Type:
- 40 Gigabit Ethernet, 100 Gigabit Ethernet
Fiber Cable Diameters Supported (core/cladding):
- 50/125 µm
Fiber Ethernet Cabling Technology:
- 40GBASE, 100GBASE
Fiber Optic Connector:
- MPO-12, MTP
Form Factor:
- QSFP28
Height:
- 11.7 mm
Hot-swap:
- Yes
Input Voltage:
- 3.3 V
Interface Type:
- QSFP28
Maximum Data Transfer Rate:
- 100000 Mbit/s
Maximum Operating Temperature:
- 70 °C
Maximum Transfer Distance:
- 150 m
Minimum Operating Temperature:
- 0 °C
Multi-mode Fiber (mmf) Supported:
- Yes
Networking Standards:
- IEEE 802.3ba, IEEE 802.3bm
Operating Relative Humidity (h-h):
- 0 - 85%
Operating Temperature (t-t):
- 0 - 70 °C
Plug And Play:
- Yes
Product Colour:
- Metallic
Quantity Per Pack:
- 1 pc(s)
Sfp Transceiver Standard:
- SR4
Sfp Transceiver Type:
- Fiber optic
Single-mode Fiber (smf) Supported:
- No
Storage Relative Humidity (h-h):
- 0 - 85%
Storage Temperature (t-t):
- -40 - 85 °C
Switch-cm-type:
- SFP
Tx Power (max):
- 2.4 dBmW
Tx Power (min):
- -8.4 dBmW
User Guide:
- Yes
Wavelength:
- 850 nm
Width:
- 124 mm
