Descriere

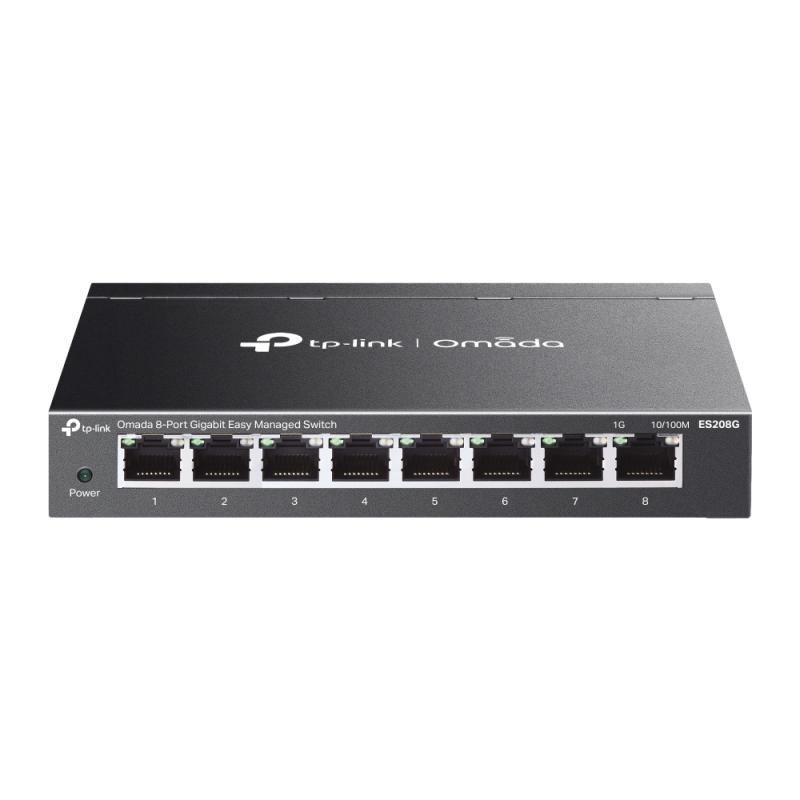

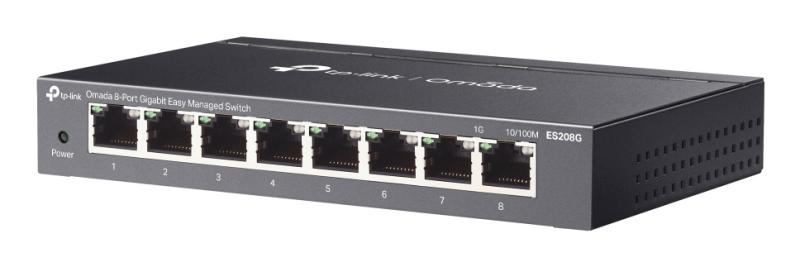

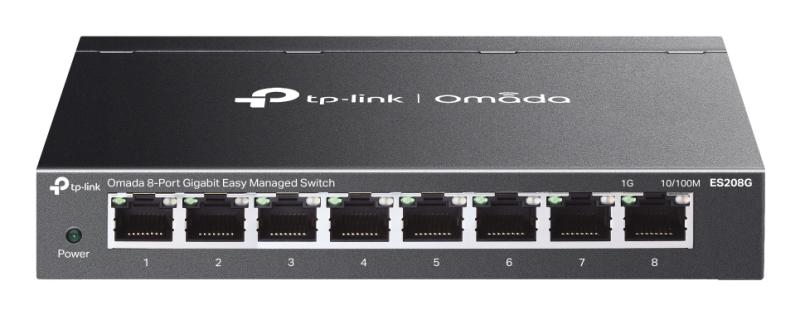

Omada 8-Port Gigabit Easy Managed Switch PORT: 8× Gigabit RJ45 Ports SPEC: Desktop Steel Case and Fanless FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Caracteristici
10g Support:
- No
Ac Adapter Included:
- Yes
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Brand:
- TP-LINK
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Dc Input Voltage:
- 5 V
Depth:
- 100.7 mm
Dhcp Features:
- DHCP client
Fanless:
- Yes
Fast Leave:
- Yes
Firmware Upgradeable:
- Yes
Flash Memory:
- 64 MB
Flow Control Support:
- Yes
Forwarding Rate:
- 11.9 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 8
Heat Dissipation:
- 9.09 BTU/h
Height:
- 25.4 mm
Igmp Snooping:
- Yes
Input Current:
- 0.6 A
Jumbo Frames:
- 15000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Lan-ports:
- 8
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 8000 entries
Mean Time Between Failures (mtbf):
- 1141726 h
Networking Standards:
- IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
Number Of Vlans:
- 32
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 45 °C
Package Type:
- Box
Packet Buffer Memory:
- 4 MB
Port Mirroring:
- Yes
Power Consumption (max):
- 2.7 W
Power Over Ethernet (poe):
- No
Power Source:
- DC
Power Supply Included:
- Yes
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- Weighted Round Robin (WRR)
Rack Mounting:
- No
Rackable:
- No
Redundant-psu:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Surge Protection:
- Yes
Surge Protection Voltage:
- 6 kV
Switch Layer:
- L2
Switch Type:
- Managed
Switching Capacity:
- 16 Gbit/s
Unified Static Configuration:
- Yes
User Guide:
- Yes
Virtual Lan Features:
- MTU VLAN, Port-based VLAN, Tagged VLAN
Vlan Support:
- Yes
Wall Mountable:
- Yes
Web-based Management:
- Yes
Width:
- 158 mm
Zero Touch Provisioning (ztp):
- Yes
