Descriere

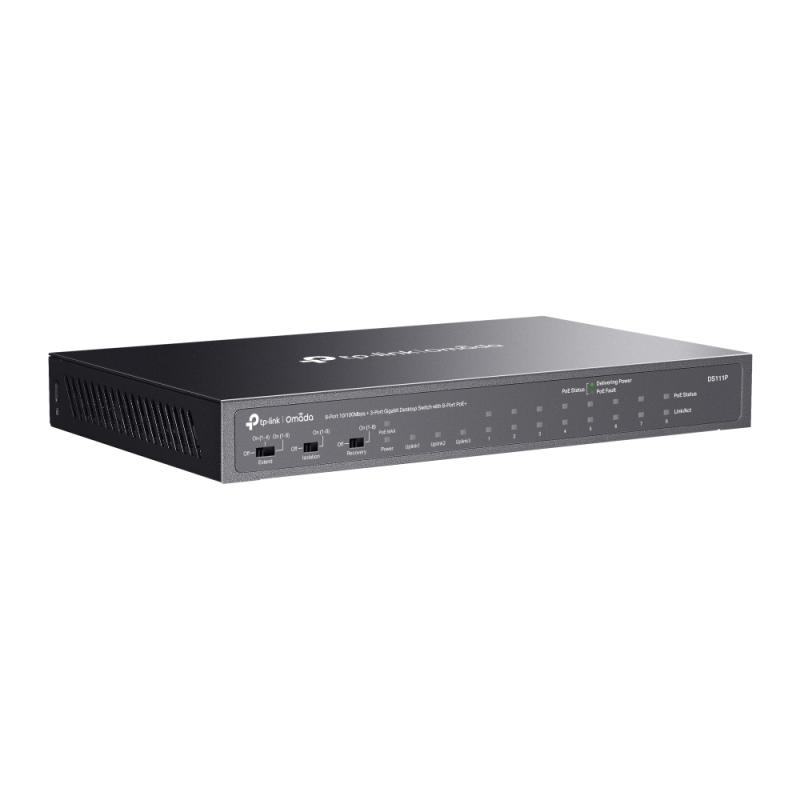

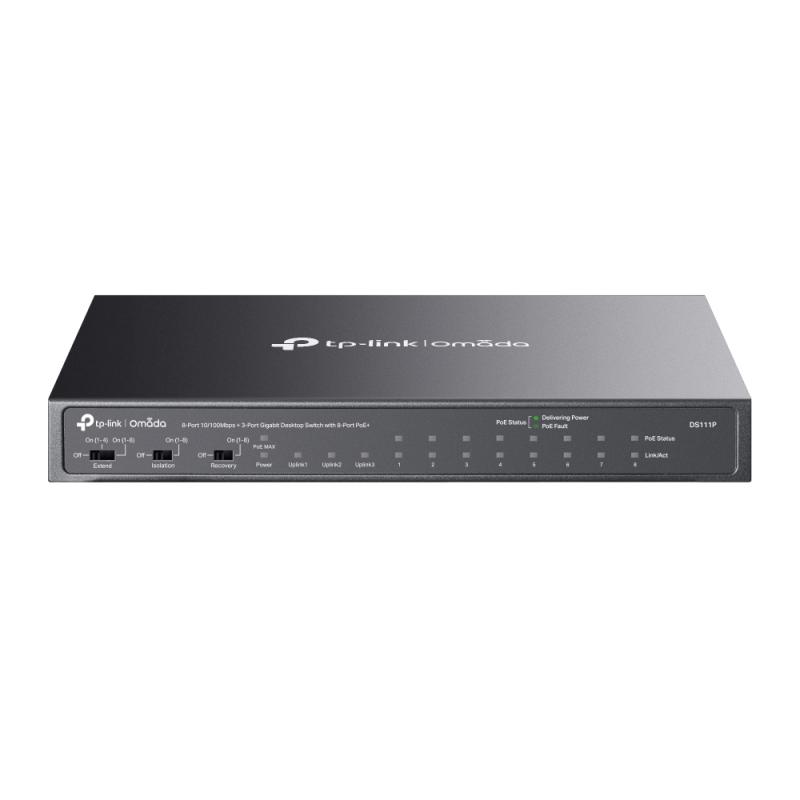

Omada 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ PORT: 8× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 1× Gigabit SFP Slots SPEC: 802.3at/af, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Auto Recovery, Plug and Play DS111P
Caracteristici
10g Support:
- No
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 10
Basic Switching Rj-45 Ethernet Ports Type:
- Fast Ethernet (10/100)
Brand:
- TP-LINK
Cables Included:
- Power
Compliance Certificates:
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX
Dc Input Voltage:
- 53.5 V
Depth:
- 126 mm
Ethernet Lan Data Rates:
- 10,100 Mbit/s
Fanless:
- Yes
Fast Ethernet (copper) Ports Quantity:
- 8
Flow Control Support:
- Yes
Forwarding Rate:
- 5.6544 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 2
Heat Dissipation:
- 263.7 BTU/h
Height:
- 26 mm
Housing Material:
- Metal
Input Current:
- 1.31 A
Jumbo Frames:
- 16
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Activity, Link, PoE, Power
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 2000 entries
Management:
- Nu
Montare In Rack:
- Nu
Networking Standards:
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Poe:
- Nu
Porturi Rj 45:
- 8× 10/100 Mbps PoE+ Ports
Porturi Sfp:
- 1× Gigabit SFP Slots
Power Connector:
- DC-in jack
Power Consumption (max):
- 77.32 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 8
Power Source:
- DC
Power Supply Included:
- Yes
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rubber Feet:
- Yes
Sfp Module Slots Quantity:
- 1
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Type:
- Unmanaged
Switching Capacity:
- 7.6 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 65 W
User Guide:
- Yes
Viteza Transfer:
- Fast Ethernet

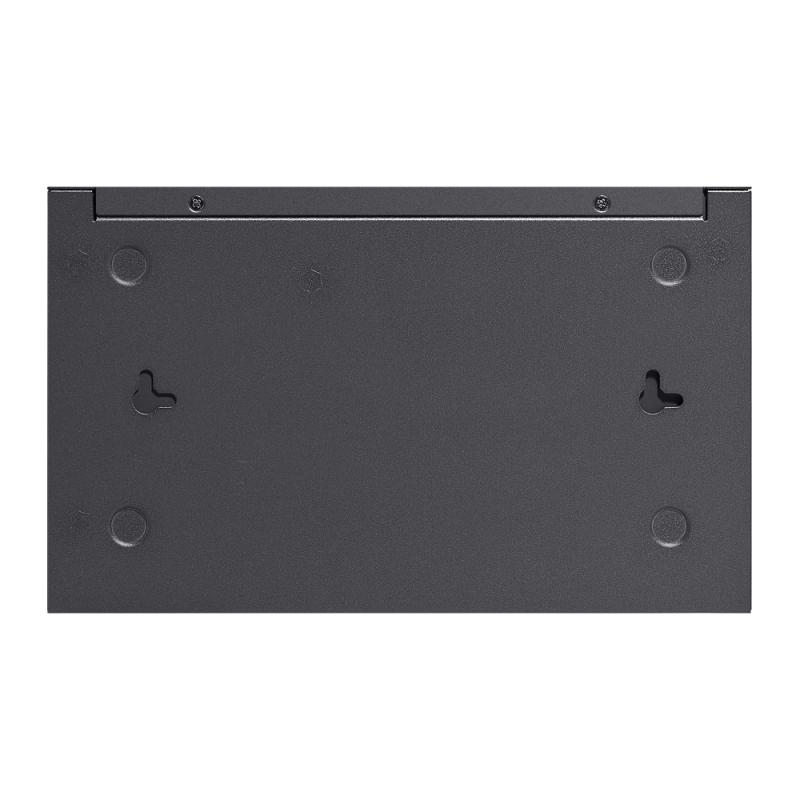

Wall Mountable:
- Yes
Width:
- 209 mm
