Descriere

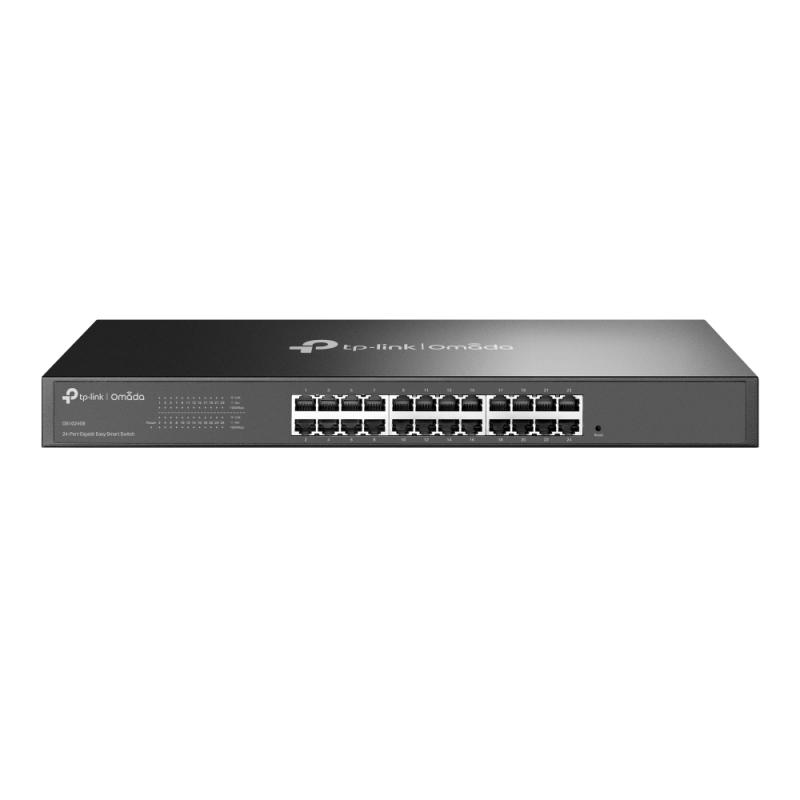

Omada 24-Port Gigabit Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play
Caracteristici
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Brand:
- TP-LINK
Broadcast Storm Control:
- Yes
Cables Included:
- Power
Compliance Certificates:
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T
Depth:
- 140 mm
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fanless:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 3.57 Mpps
Heat Dissipation:
- 46.58 BTU/h
Height:
- 44 mm
Housing Material:
- Steel
Igmp Snooping:
- Yes
Jumbo Frames:
- 10
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 8000 entries
Management:
- Nu
Montare In Rack:
- Nu
Networking Standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number Of Queues:
- 4
Number Of Vlans:
- 32
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 4.1 MB
Poe:
- Nu
Port Mirroring:
- Yes
Porturi Rj 45:
- 24× Gigabit RJ45 Ports
Porturi Sfp:
- 24× Gigabit RJ45 Ports
Power Connector:
- AC-in jack
Power Consumption (max):
- 13.66 W
Power Over Ethernet (poe):
- No
Power Source:
- AC
Power Supply Included:
- Yes
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- Priority queuing (PQ)
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Rate Limiting:
- Yes
Reset Button:
- Yes
Rubber Feet:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Layer:
- L2
Switch Type:
- Unmanaged
Switching Capacity:
- 4.8 Gbit/s
User Guide:
- Yes
Virtual Lan Features:
- Port-based VLAN, Tagged VLAN, MTU VLAN
Viteza Transfer:
- Gigabit
Vlan Support:
- Yes
Width:
- 440 mm
