Descriere

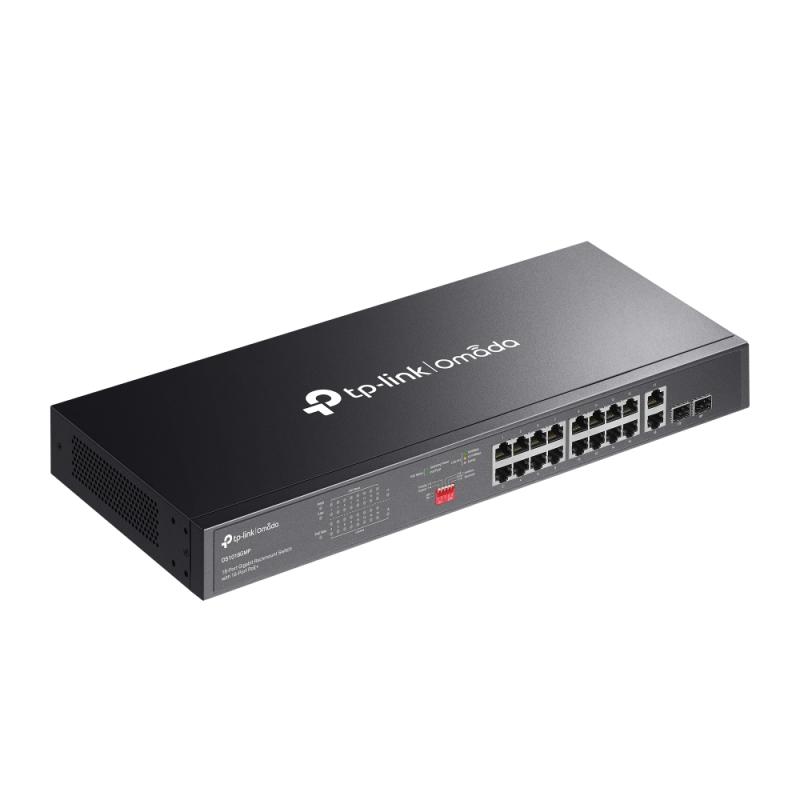

Omada 18-port gigabit rackmount switch este soluția ideală pentru rețelele de dimensiuni medii, oferind 16 porturi PoE+ care facilitează alimentarea dispozitivelor externe, cum ar fi camerele de supraveghere sau acces point-urile. Cu o putere totală PoE de 250W, acest switch asigură o conectivitate rapidă și fiabilă. Designul său rack-mountable de 1U permite integrarea ușoară în orice dulap de server, iar funcția plug and play garantează o instalare simplă. Optimizează-ți rețeaua cu un echipament robust și eficient!
Caracteristici
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 16
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Brand:
- TP-LINK
Cables Included:
- Power
Compliance Certificates:
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Depth:
- 180 mm
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 26.78 Mpps
Heat Dissipation:
- 1000.29 BTU/h
Height:
- 44 mm
Housing Material:
- Metal
Jumbo Frames:
- 10
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Activity, Link, PoE, Power
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 8000 entries
Management:
- Nu
Montare In Rack:
- Nu
Number Of Fans:
- 2 fan(s)
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 50 °C
Packet Buffer Memory:
- 4.1 MB
Plug And Play:
- Yes
Poe:
- Nu
Porturi Rj 45:
- 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports
Porturi Sfp:
- 2× Combo Gigabit SFP Slots
Power Connector:
- AC-in jack
Power Consumption (max):
- 293.34 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 16
Power Source:
- AC
Power Supply Included:
- Yes
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Rubber Feet:
- Yes
Sfp Module Slots Quantity:
- 2
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Type:
- Unmanaged
Switching Capacity:
- 36 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 250 W
User Guide:
- Yes
Viteza Transfer:
- Gigabit
Width:
- 440 mm
