Descriere

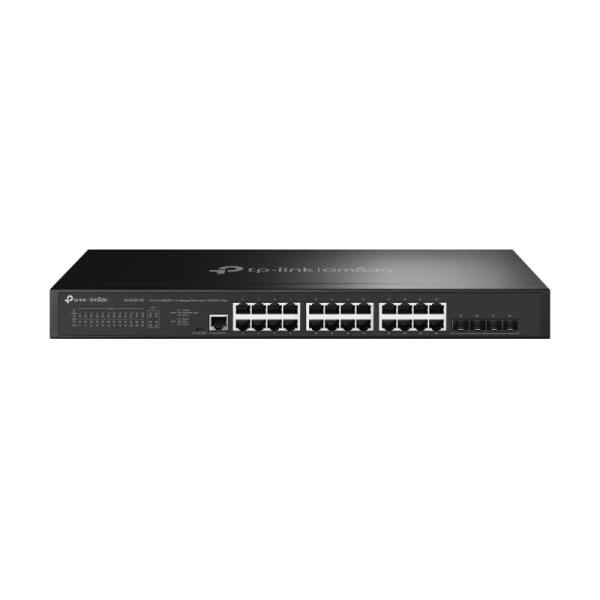

"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Caracteristici
10g Support:
- Yes
2.5g Ethernet (copper) Ports Quantity:
- 24
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Active Link Detection:
- Yes
Arp Inspection:
- Yes
Authentication:
- Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication Type:
- AAA, RADIUS, TACACS+
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- 2.5G Ethernet (100/1000/2500)
Bpdu Filtering/protection:
- Yes
Brand:
- TP-LINK
Broadcast Storm Control:
- Yes
Cables Included:
- LAN (RJ-45)
Certification:
- CE/FCC/RoHS
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/Micro-USB
Depth:
- 180 mm
Dhcp Features:
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 148.8 Mpps
Garp Vlan Registration Protocol (gvrp):
- Yes
Head-of-line (hol) Blocking:
- Yes
Heat Dissipation:
- 154.38 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Installed Sfp+ Modules Quantity:
- 0
Ip-mac-port Binding:
- Yes
Ipv4 & Ipv6 Features:
- IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Ipv4 Fib Entries:
- 100
Ipv4 Routes:
- 48
Ipv6 Fib Entries:
- 100
Ipv6 Routes:
- 48
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 32000 entries
Management:
- Managed
Management Protocols:
- SNMP v1/v2c/v3, SNTP
Mib Support:
- Yes
Montare In Rack:
- Da
Multicast Listener Discovery (mld) Snooping:
- Y
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Numar Porturi:
- 24
Number Of Fans:
- 1 fan(s)
Number Of Static Routes:
- 48
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 16 MB
Poe:
- Nu
Policy-based Routing:
- Yes
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (max):
- 45.1 W
Power Over Ethernet (poe):
- No
Power Source:
- AC
Power Supply Included:
- Yes
Product Colour:
- Black
Proprietati:
- Layer 2
Quality Of Service (qos) Support:
- Yes
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rate Limiting:
- Yes
Redundant Psu:
- Da
Sfp Module Slots Quantity:
- 4
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stacabil:
- Nu
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Layer:
- L2+
Switch Type:
- Managed
Switching Capacity:
- 200 Gbit/s
System Event Log:
- Yes
Virtual Lan Features:
- Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
