Descriere

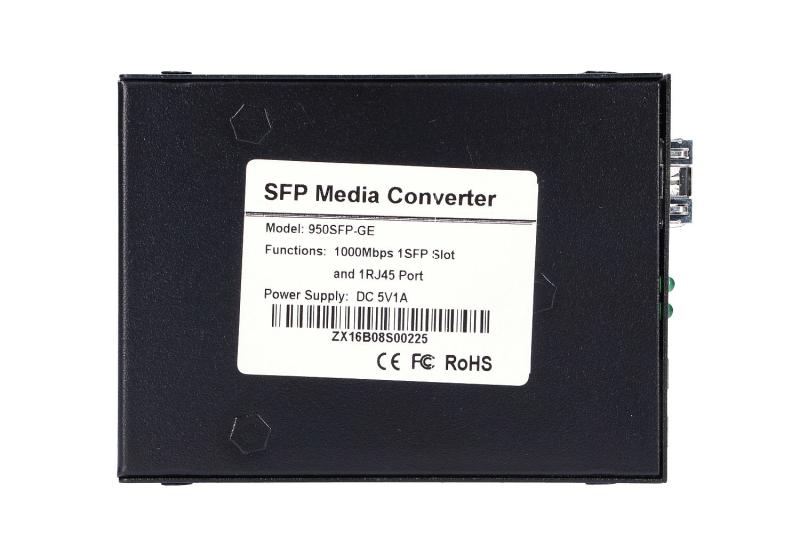

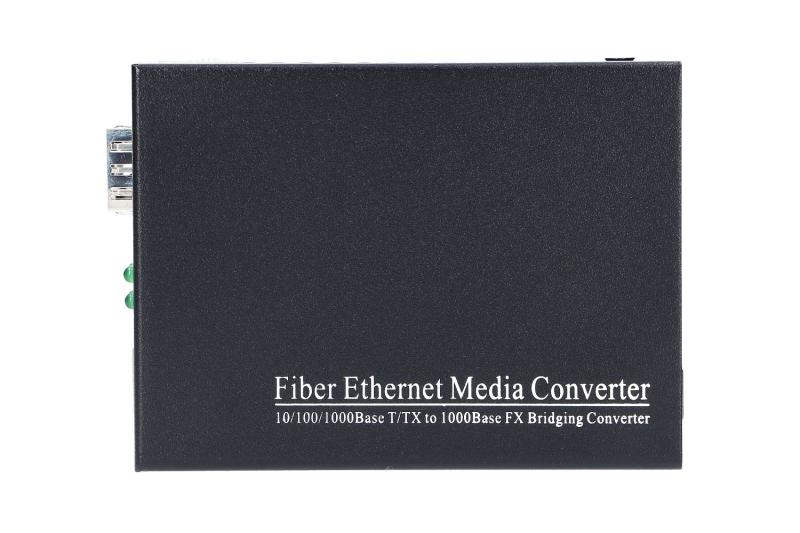

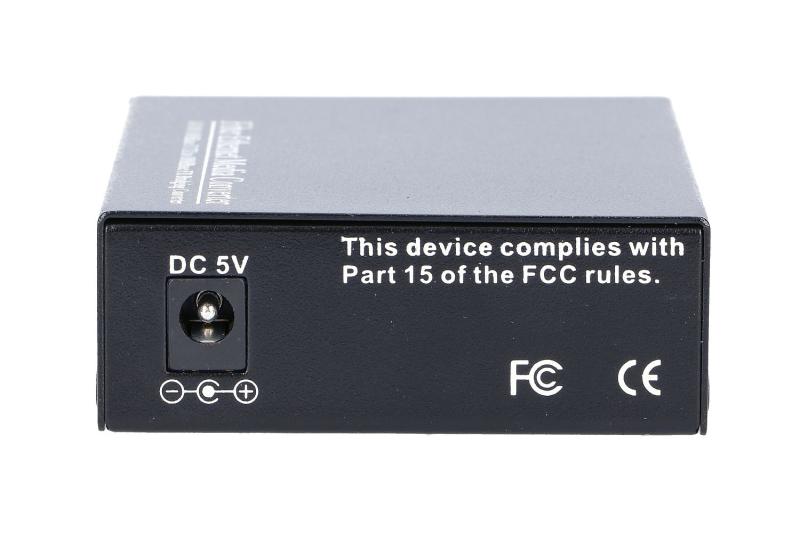

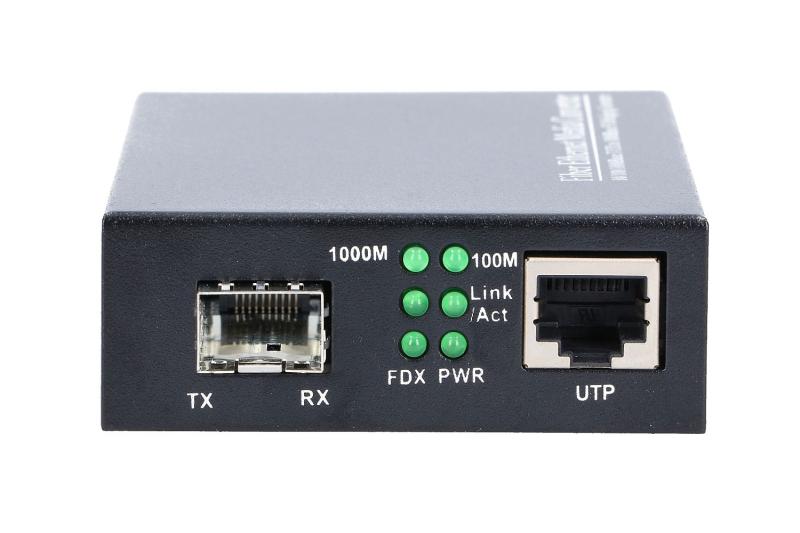

Extralink Sedir Media converter 1x SFP 1x RJ45 1000Mb/s MC220 replacement
Caracteristici
Ac Input Frequency:
- 50 - 60 Hz
Auto Mdi/mdi-x:
- Yes
Brand:
- EXTRALINK
Connectivity Technology:
- Wired
Converter Input Interface:
- 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX
Converter Output Interface:
- 1000Base-FX
Copper Ethernet Cabling Technology:
- 10BASE-T, 10BASE-TX, 100BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-TX
Data Transfer Rate:
- 1000 Mbit/s
Depth:
- 94 mm
Din Rail Mounting:
- No
Duplex System:
- Full
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fiber Ethernet Cabling Technology:
- 1000BASE-FX
Fiber Optic Connector:
- SFP
Height:
- 26.5 mm
Hot-swap:
- Yes
Housing Material:
- Metal
Input Current:
- 0.3 A
Input Voltage:
- 100 - 240 V
Internal:
- Yes
Jumbo Frames:
- 9216
Jumbo Frames Support:
- Yes
Led Indicators:
- Activity, Link, Power
Maximum Data Transfer Rate:
- 1000 Mbit/s
Maximum Transfer Distance:
- 10000 m
Networking Standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Output Current:
- 1 A
Output Voltage:
- 5 V
Plug And Play:
- Yes
Power Over Ethernet (poe):
- No
Power Over Ethernet (poe) Ports Quantity:
- 0
Producator:
- EXTRALINK
Reset Button:
- No
Switch-cm-type:
- SFP
Wavelength:
- 1 nm
Web-based Management:
- No
Width:
- 70.6 mm
