Descriere

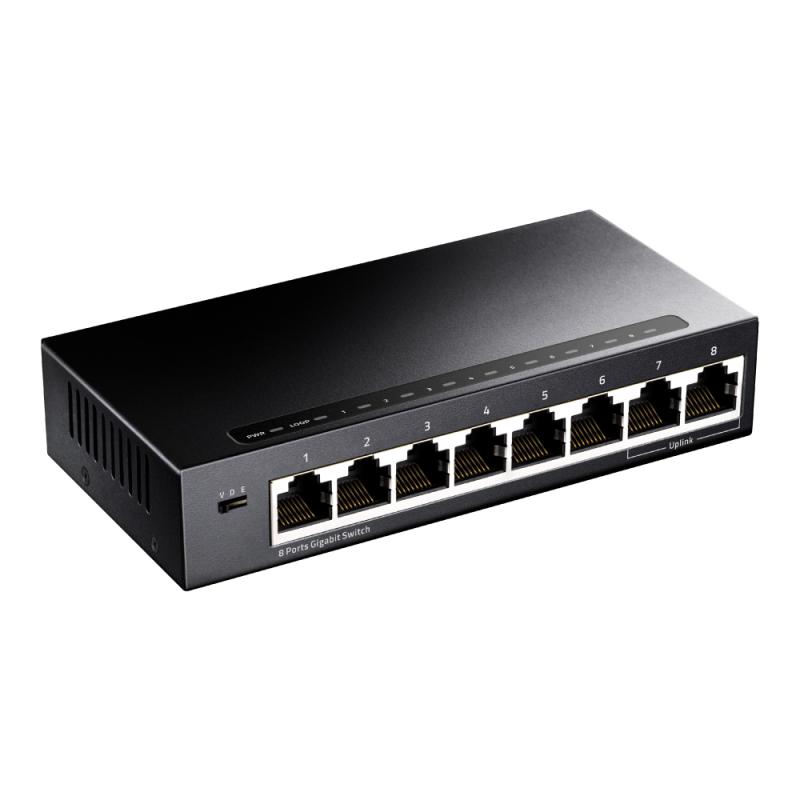

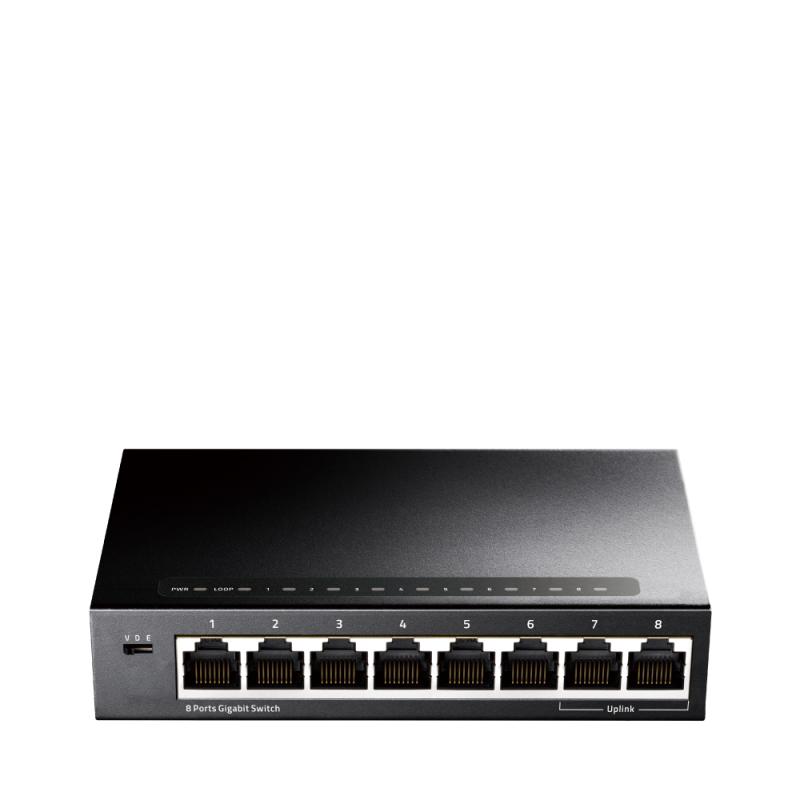

CUDY 8-Port Gigabit Ethernet Switch, 8 10/100/1000M RJ45 Ports, IGMP Snooping, Loop Detection/Prevention, 802.1p/DSCP QoS, Desktop Metal Case, Power Saving, Plug & Play, Wall-Mount
Caracteristici
Ac Input Voltage:
- 100 - 240 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Brand:
- CUDY
Cable Types Supported:
- Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Cables Included:
- DC
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-TX
Dc Input Voltage:
- 5 V
Depth:
- 77 mm
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Flow Control Support:
- Yes
Full Duplex:
- Yes
Half Duplex:
- Yes
Height:
- 25 mm
Jumbo Frames:
- 2000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 8
Layer:
- Layer-2
Led Indicators:
- Loop, Link, Power
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 1000 entries
Master (outer) Case Gross Weight:
- 21 kg
Master (outer) Case Height:
- 400 mm
Master (outer) Case Length:
- 320 mm
Master (outer) Case Width:
- 505 mm
Mean Time Between Failures (mtbf):
- 100000 h
Networking Standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating Altitude:
- 0 - 3048 m
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 10 - 50 °C
Package Depth:
- 120 mm
Package Height:
- 63 mm
Package Type:
- Box
Package Weight:
- 500 g
Package Width:
- 175 mm
Packet Buffer Memory:
- 2.5 MB
Power Over Ethernet (poe):
- No
Power Source:
- AC/DC
Power Supply Included:
- Yes
Producator:
- CUDY
Product Colour:
- Black
Products Per Master (outer) Case:
- 40 pc(s)
Quick Start Guide:
- Yes
Rack Mounting:
- No
Rackable:
- No
Redundant-psu:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switching Capacity:
- 16 Gbit/s
Throughput:
- 11.9 Mpps
Vlan Support:
- Yes
Weight:
- 300 g
Width:
- 137 mm
