Descriere

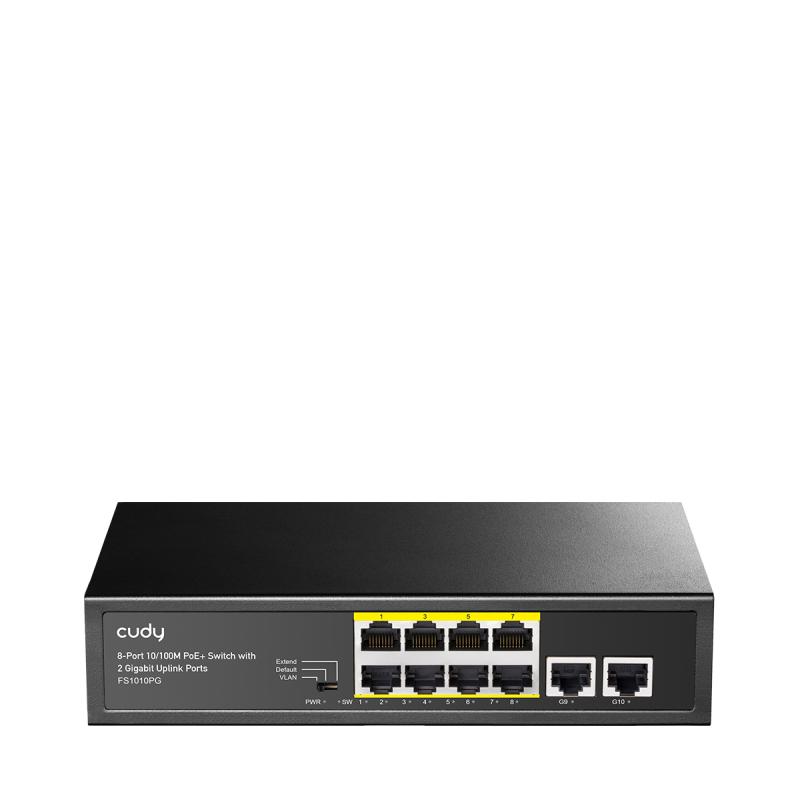

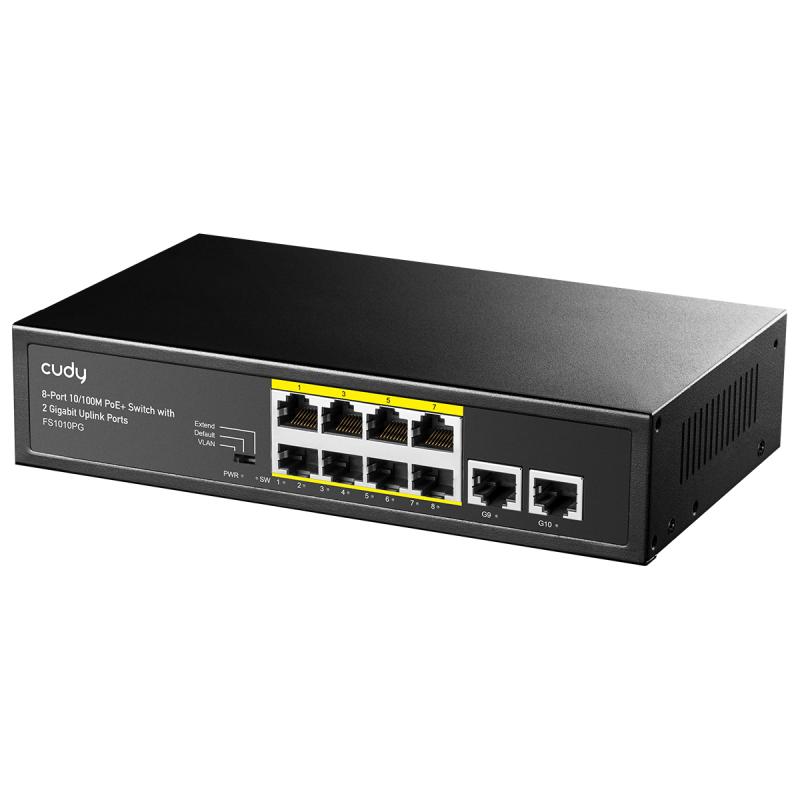

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF Switch(New version), long distance:250M at CCTV mode. Support PD Alive Function, ±4 KV Surge Protection, 802.3af/at standard, Alternative 1/2(+),3/6(-), Steel Case,Watchdog, 120W Internal Power Supply
Caracteristici
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Bandwidth:
- 2 Gbit/s
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- Fast Ethernet (10/100)
Brand:
- CUDY
Cable Types Supported:
- Cat3, Cat4, Cat5, Cat5e
Cables Included:
- AC
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX
Depth:
- 150 mm
Ethernet Lan Data Rates:
- 10,100 Mbit/s
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 1.48 Mpps
Full Duplex:
- Yes
Half Duplex:
- Yes
Height:
- 44 mm
Housing Material:
- Metal
Jumbo Frames:
- 1528
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 8
Layer:
- Layer-2
Led Indicators:
- Activity, Link, PoE, Power
Mac Address Table:
- 8000 entries
Mean Time Between Failures (mtbf):
- 50000 h
Networking Standards:
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 0.25 MB
Plug And Play:
- Yes
Power Connector:
- AC-in jack
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Ports Quantity:
- 8
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 1
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
- CUDY
Product Colour:
- Black
Rackable:
- No
Redundant-psu:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Surge Protection:
- Yes
Surge Protection Voltage:
- 4 kV
Total Power Over Ethernet (poe) Budget:
- 120 W
Uplink Ports Quantity:
- 2
Vlan Support:
- Yes
Width:
- 220 mm
