Descriere

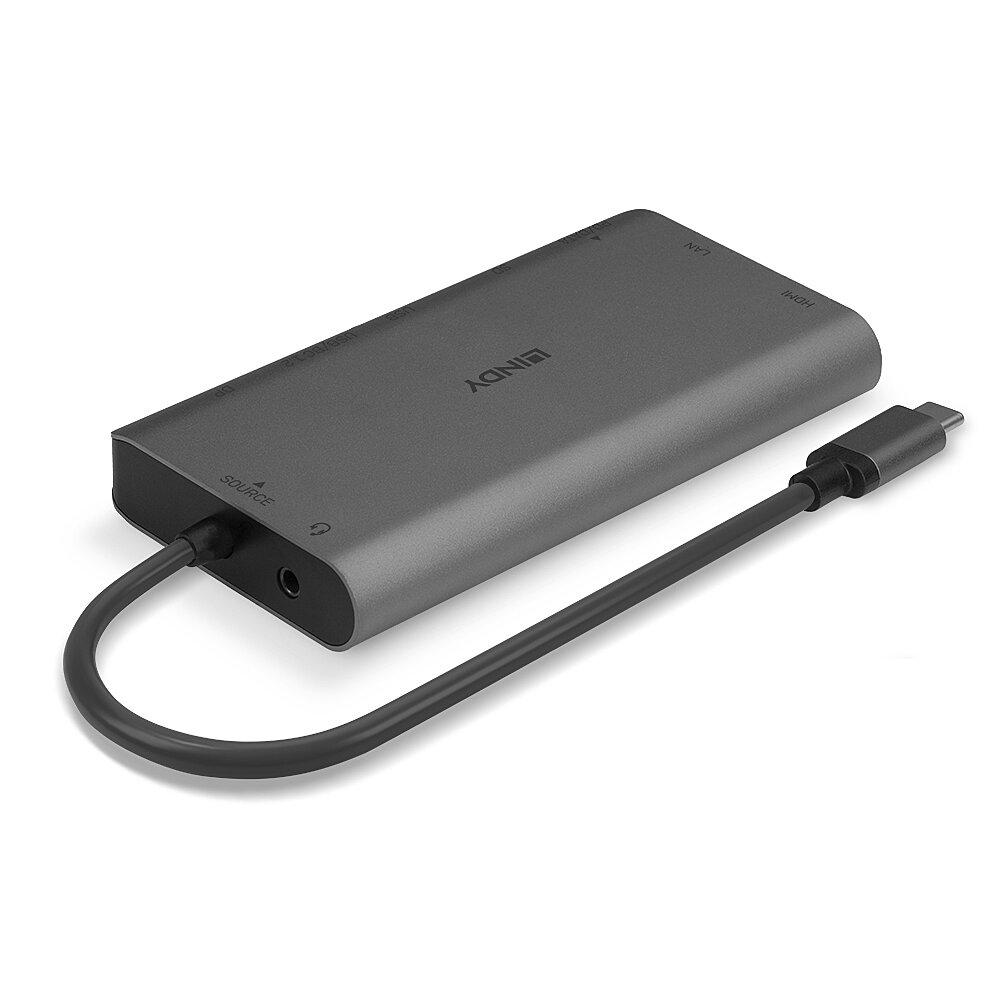

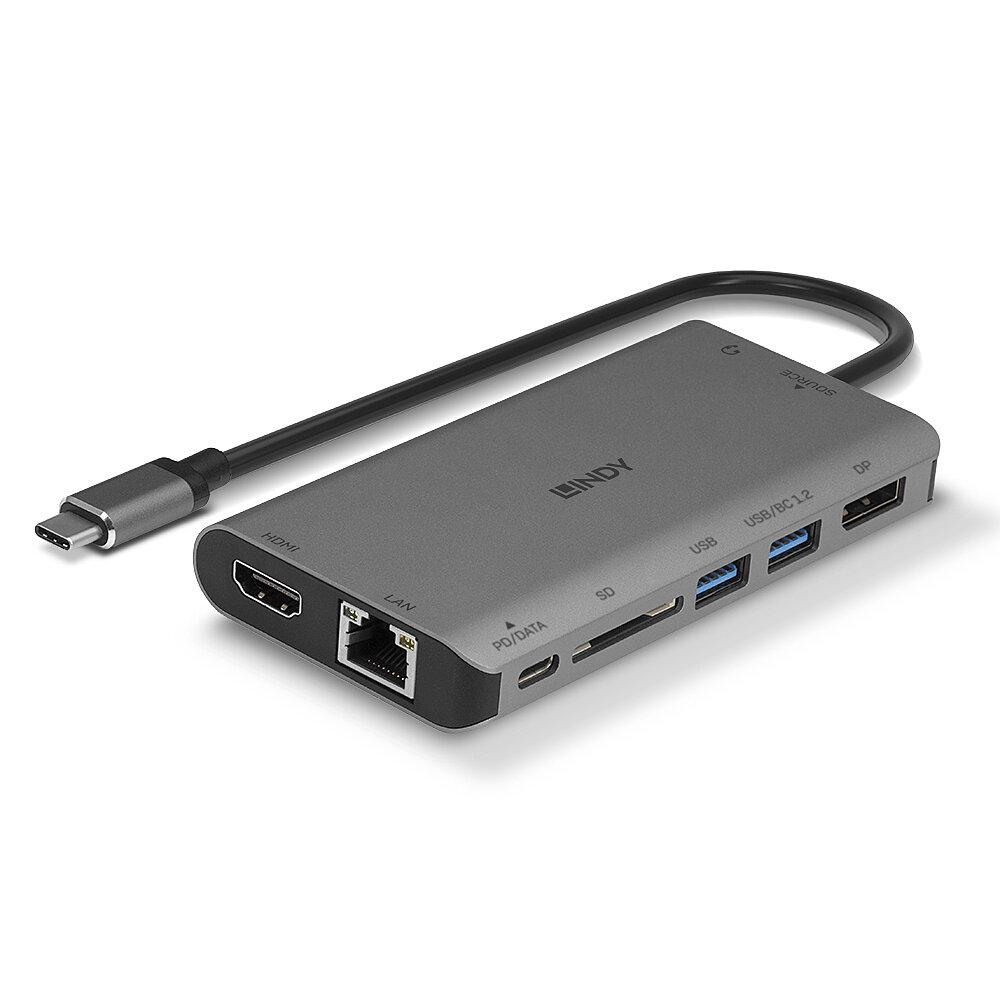

Mini Docking Station Lindy USB 3.2 Type C - 4K HDMI & DP, PD 3.0 100W, USB 3.2, Gigabit Ethernet, SD, Audio
Connect your peripherals via a single USB Type C cable
Connect your peripherals via a single USB Type C cable
Description
- Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
- Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
- Features DisplayPort Alternate Mode
- USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock
echnical details
Specifications
- Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
- Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)
- Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
- Maximum Input Resolution: 3840x2160@30Hz
- Maximum Output Resolution: 3840x2160@30Hz (HDMI), 3840x2160@30Hz (DP), simultaneous connection: 1920x1080
- Chipset: VM3332, VL817, VL102, AU6438, RTL8153B, HS-100B
- Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
- Power Delivery: PD 3.0 up to 100W (20V 5A)
- HDCP Support: HDCP 1.4
- Supported Audio: Supports 48/44.1kHz audio sampling rate
- Separate Audio Ports: 1x Audio combo port 3.5mm
- Special Features: DisplayPort Alternate Mode, MST Extended display support, USB Type C Female port supports power and data, 1x Battery Charging 1.2 port
Connectors
- Inputs: 1 x USB Type C (Male)
- Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
- Power: 1 x USB Type C (Female) PD port
Physical Properties
- Dimensions WxDxH: 116.5x61x16mm (4.59x2.4x0.63in)
- Housing Material: Aluminium
- Net Weight: 0.115kg (0.25lb)
- Operating Temperature: 0° - 55°C (32°F - 131°F)
- Storage Temperature: -10°C - 70°C (-14°F - 158°F)
- Humidity: 0 - 85% RH (non-condensing)
- Power Requirements: Bus-powered
- Colour: Grey
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 150x137x120mm (5.91x5.39x0.79in)
- Gross Weight: 0.15kg (0.33lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65
Package Contents
- USB 3.2 Type C Laptop Mini Dock
- Lindy Manual
Caracteristici
Brand:
- LINDY
Compatible Memory Cards:
- SDXC
Cu Alimentare Separata:
- Da
Data Transfer Rate:
- 5 Gbit/s
Hdmi Ports Quantity:
- 1
Host Interface:
- USB Type-C
Hub Interfaces:
- HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
Interfata Sistem:
- USB
Numar Porturi:
- peste 5
Ports Quantity:
- 6
Producator:
- Lindy
Product Colour:
- Black
Tip Port Usb:
- 3.2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 1
Windows Operating Systems Supported:
- Windows 10, Windows 11
