Descriere

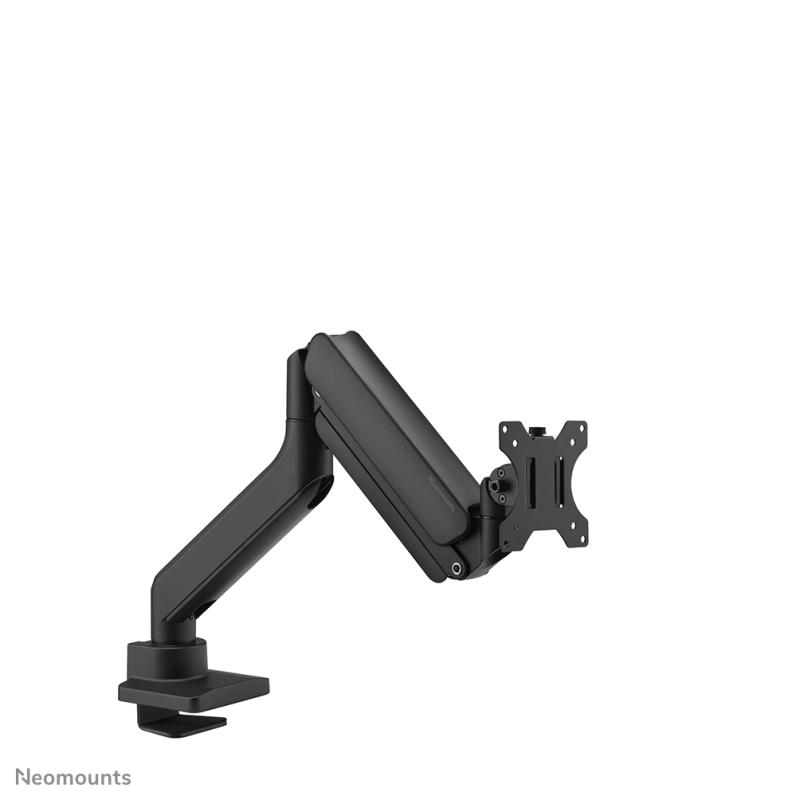

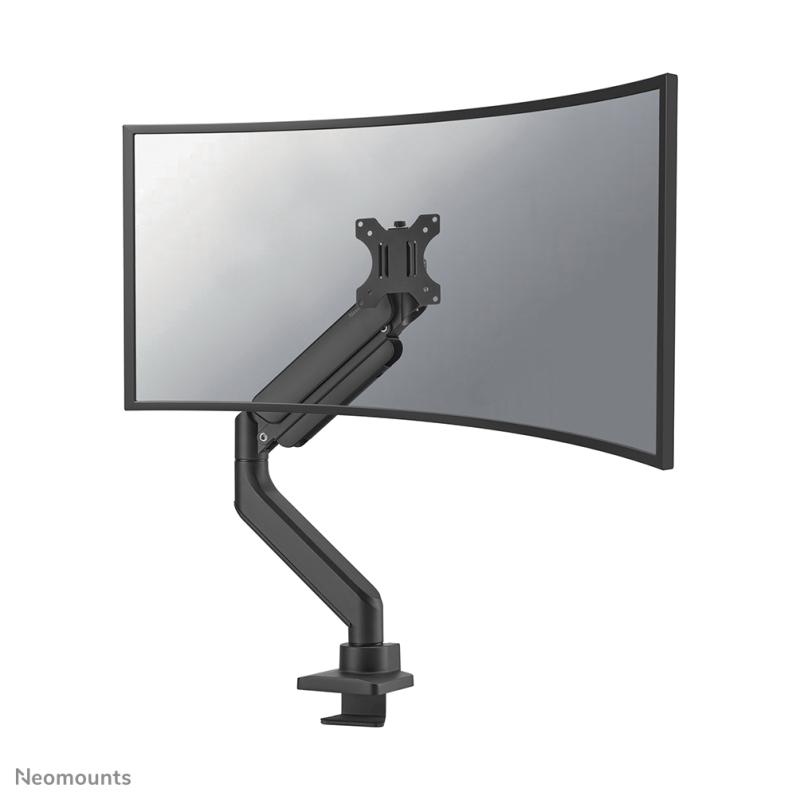

Brat monitor pentru ecrane curbate Neomounts DS70PLUS-450BL1; pentru display-uri cu diagonale 17"-49", sistem de prindere VESA 75x75~100x100, greutate maxima suportata 18kg, full motion, tilt +45°, swivel 90°, rotate 180°, distanta fata de perete 108-568mm; gas spring; culoare negru. Garantie 5 ani
Caracteristici
Adjustable Depth:
- Yes
Angle Of Rotation:
- 360°
Brand:
- NEOMOUNTS
Cable Management:
- Yes
Country Of Origin:
- China
Depth:
- 568 mm
Depth Adjustment Range:
- 54 - 511 mm
Desk Thickness (max):
- 4.5 cm
Desk Thickness (min):
- 1 cm
Distance To The Wall (max):
- 56.8 cm
Distance To The Wall (min):
- 10.8 cm
Harmonized System (hs) Code:
- 7326909890
Height:
- 653 mm
Height Adjustment:
- Yes
Height Adjustment Range:
- 261 - 555 mm
Height Adjustment Type:
- Gas spring
Housing Material:
- Steel
Master (outer) Case Gross Weight:
- 20.5 kg
Master (outer) Case Height:
- 580 mm
Master (outer) Case Length:
- 275 mm
Master (outer) Case Net Weight:
- 16 kg
Master (outer) Case Width:
- 460 mm
Max-weight:
- max.12-Kg
Maximum Screen Size:
- 124.5 cm (49)
Maximum Vesa Mount:
- 100 x 100 mm
Maximum Weight Capacity:
- 18 kg
Maximum Weight Capacity (per Curved/ultra-wide Display):
- 14 kg
Minimum Screen Size:
- 43.2 cm (17)
Minimum Vesa Mount:
- 75 x 75 mm
Minimum Weight:
- 1 kg
Mounting:
- Clamp/Grommet
Mounting Type:
- Desk
Mvmt-type:
- 4-movement
Number Of Displays Supported:
- 1
Package Depth:
- 127 mm
Package Height:
- 445 mm
Package Net Weight:
- 5.1 kg
Package Type:
- Box
Package Weight:
- 5.1 kg
Package Width:
- 280 mm
Panel Mounting Interface:
- 75 x 75,100 x 100 mm
Product Colour:
- Black
Products Per Master (outer) Case:
- 4 pc(s)
Products Per Pallet (eu):
- 64 pc(s)
Quantity Per Pack:
- 1 pc(s)
Rotating:
- Yes
Swivel Angle Range:
- -90 - 90°
Swivelling:
- Yes
Tilt Adjustment:
- Yes
Tilt Angle Range:
- -45 - 45°
Weight:
- 3.98 kg
Width:
- 120 mm
Width Adjustment Range:
- 0 - 920 mm
