Descriere

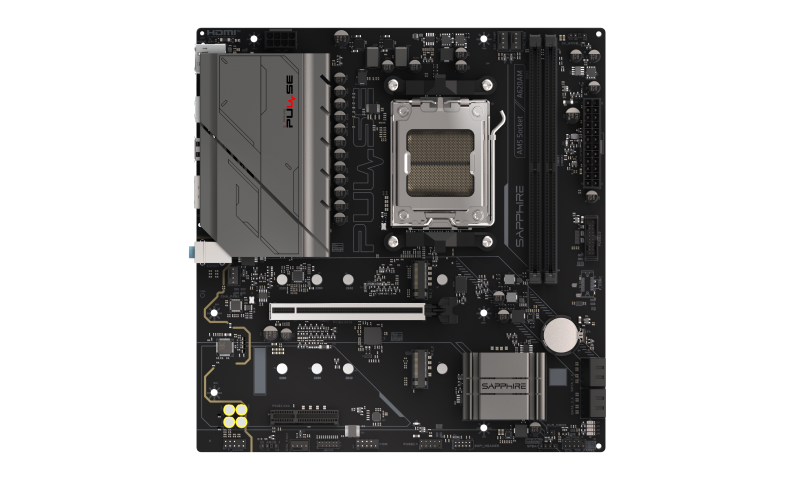

Placa de bază SAPPHIRE Pulse A620AM este o soluție ideală pentru utilizatorii care doresc să construiască un sistem PC eficient, bazat pe procesoare AMD. Cu un design compact și o lățime de 244 mm, aceasta suportă până la 64 GB de memorie internă în configurație dual-channel, fiind perfectă pentru aplicații care necesită performanță. În plus, oferă conectivitate prin Ethernet LAN și multiple porturi USB, facilitând astfel integrarea în rețele și conectarea diverselor dispozitive. Această placă de bază este compatibilă cu sistemele de operare Windows 10 și 11, fiind potrivită atât pentru utilizatorii casnici, cât și pentru cei din mediul profesional.
Caracteristici
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 3.0
2nd M.2 Largest Key Size:
- 2280
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Connector:
- Yes
Audio Output Channels:
- 5.1 channels
Brand:
- SAPPHIRE
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 235 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Headphone Outputs:
- 3
Lan Controller:
- Realtek RTL8111K
Maximum Internal Memory:
- 64 GB
Maximum Internal Memory Per Slot:
- 32 GB
Mb-format:
- micro-ATX
Mb-socket:
- AM4
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD A620A
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- micro ATX
Number Of Chassis Fan Connectors:
- 2
Number Of Cpu Fan Connectors:
- 1
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Number Of Water Pump Connectors:
- 1
Onboard-cpu:
- Yes
Parallel Processing Technology Support:
- Not supported
Pci:
- 2
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X4 Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 1
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Product Colour:
- Black
Ps/2 Ports Quantity:
- 1
Ram-slots:
- 2
Rgb Led Pin Header:
- Yes
Serial Port Headers:
- 1
Supported Memory Clock Speed (max):
- 7600 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- PCI Express 3.0, PCI Express 4.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb Connector Type:
- USB Type-A
Usb3:
- 1
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
