Descriere

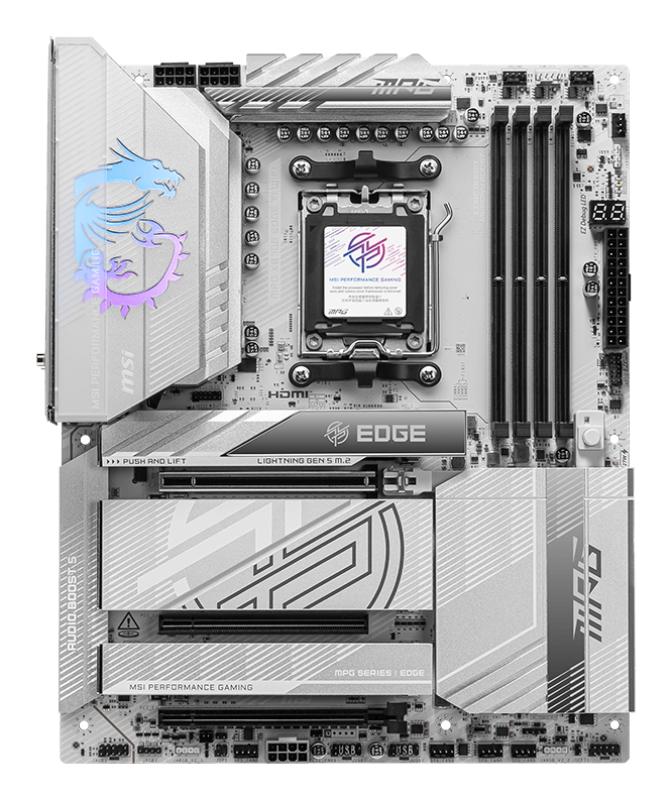

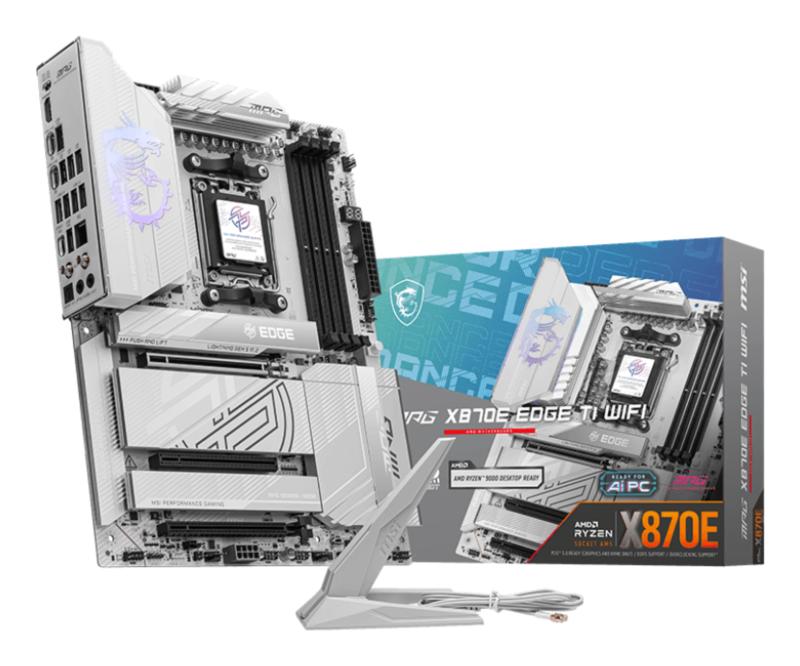

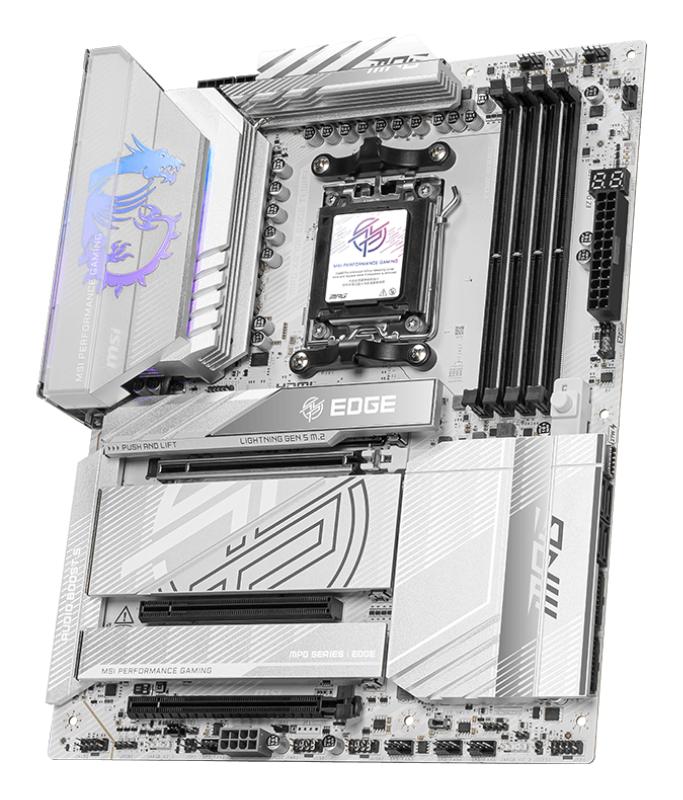

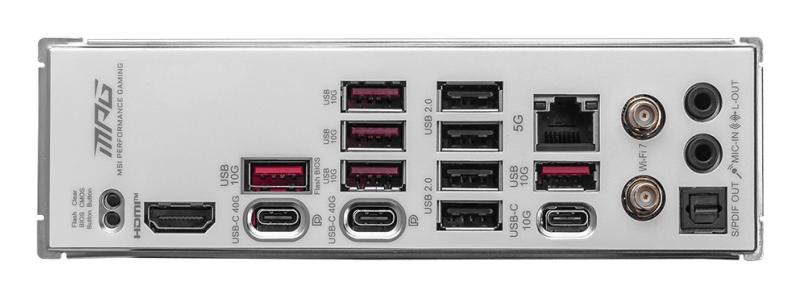

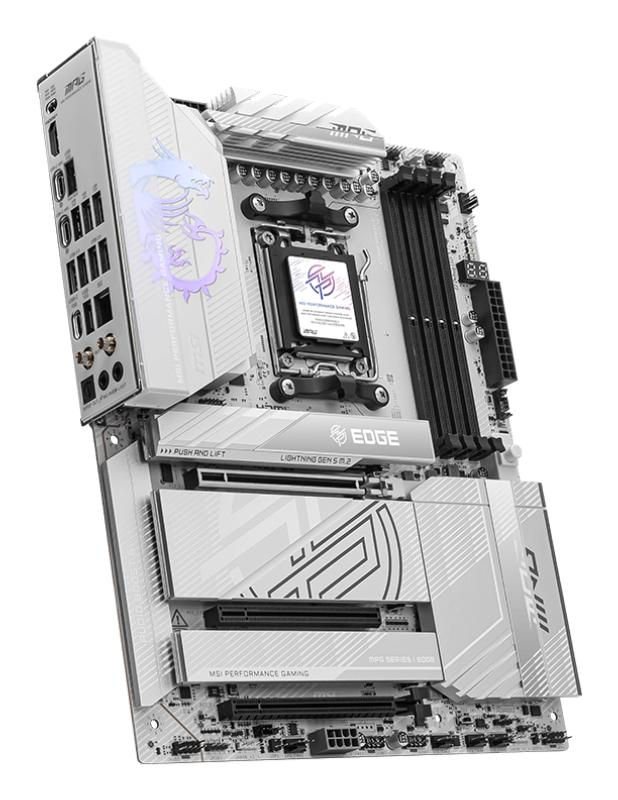

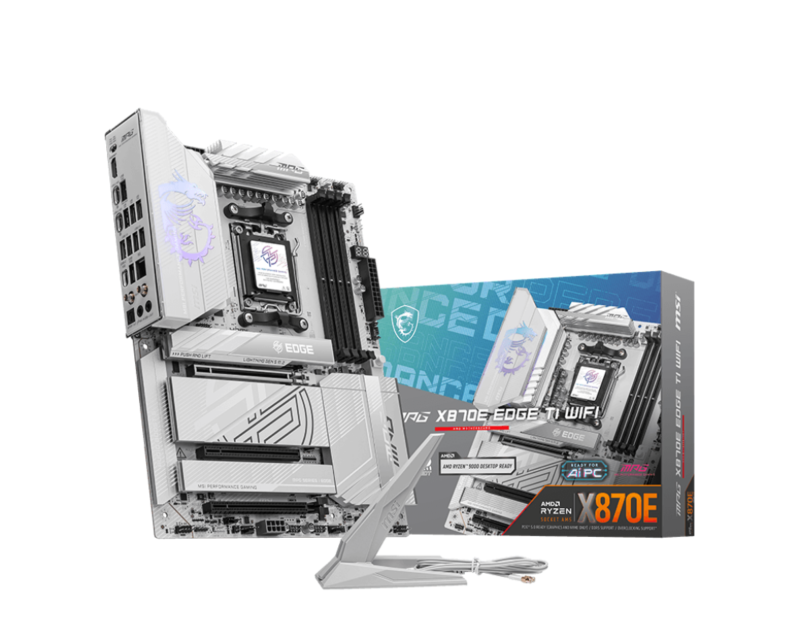

Placa de Baza MSI MPG X870E EDGE TI WIFI AM5, 4x DDR5, 1x HDMI 2x Type-C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Caracteristici
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 22110
2nd M.2 Highest Pci Express Generation:
- 5.0
2nd M.2 Largest Key Size:
- 2280
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 2280
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 2280
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bluetooth:
- Yes
Bluetooth Version:
- 5.4
Brand:
- MSI
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 304.8 mm
Displayport Version:
- 1.4
Displayports Quantity:
- 2
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Lan Controller:
- Realtek RTL8126
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Supported By Processor:
- 256 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD X870E
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
On-board Graphics Card:
- No
Onboard-cpu:
- No
Pc Health Monitoring:
- CPU, Fan, Temperature, Voltage
Pci:
- 0
Pci Express X16 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
- MSI
Product Colour:
- White
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
S/pdif Out Port:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8400 MHz
Supported Memory Clock Speeds:
- 4800,5600,8400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Total Number Of Sata Connectors:
- 4
Usb 2.0 Connectors:
- 4
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 5
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb4 Gen 2x2 Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Width:
- 243.8 mm
Recenzii
Nu au fost găsite recenzii
