Descriere

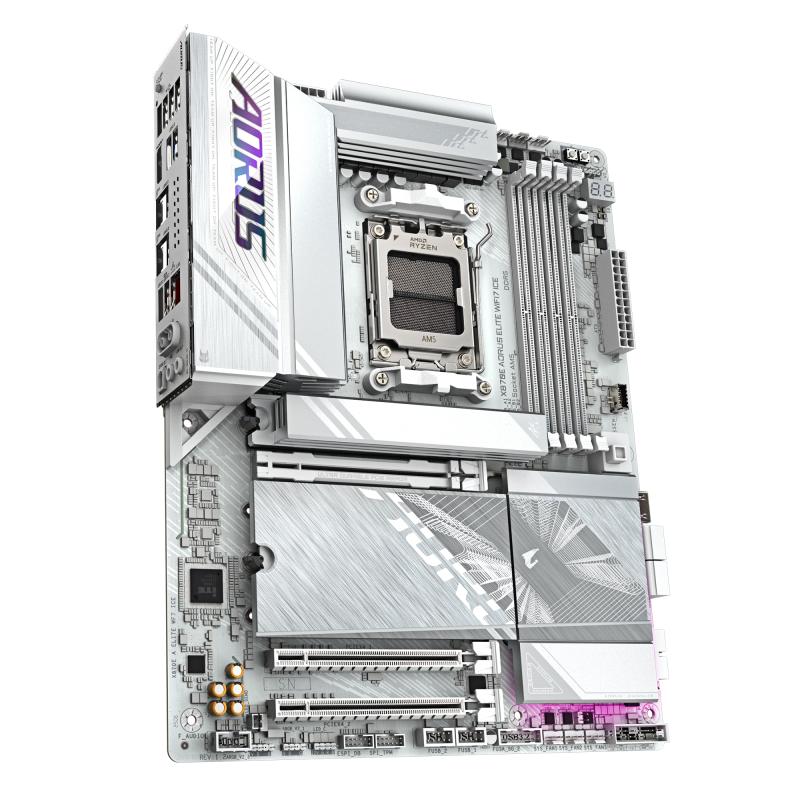

Placa de bază Gigabyte X870E Aorus Elite WiFi7 Ice AM5 este proiectată pentru utilizatorii care doresc performanță și conectivitate avansată. Cu suport pentru 4 module DDR5 și multiple sloturi PCIe, această placă permite extinderea ușoară a sistemului dumneavoastră. Cele patru sloturi M.2 și cele patru conectori SATA 6Gb/s asigură opțiuni variate pentru stocare rapidă. Ideală pentru gameri și profesioniști, această placă de bază oferă o fundație solidă pentru construirea unui PC de înaltă performanță.
Caracteristici
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 5.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 5.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220-VB
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.4
Brand:
- GIGABYTE
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cooling Type:
- Passive
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Digital Audio Optical Out:
- 1
Directx Version:
- 12.0
Displayport Version:
- 1.4
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8125
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD X870E
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
Number Of Water Pump Connectors:
- 2
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 294 mm
Package Height:
- 80 mm
Package Weight:
- 2.64 kg
Package Width:
- 345 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Pci-ex1:
- 0
Pci-ex16:
- 3
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
- Gigabyte
Product Colour:
- White
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8200 MHz
Supported Memory Clock Speeds:
- 8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, PCI Express 5.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Usb3:
- 4-8
Usb4 Gen 2x2 Ports Quantity:
- 2
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 2.64 kg
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11 x64
Wlan Controller Model:
- Realtek RTL8922AE
