Descriere

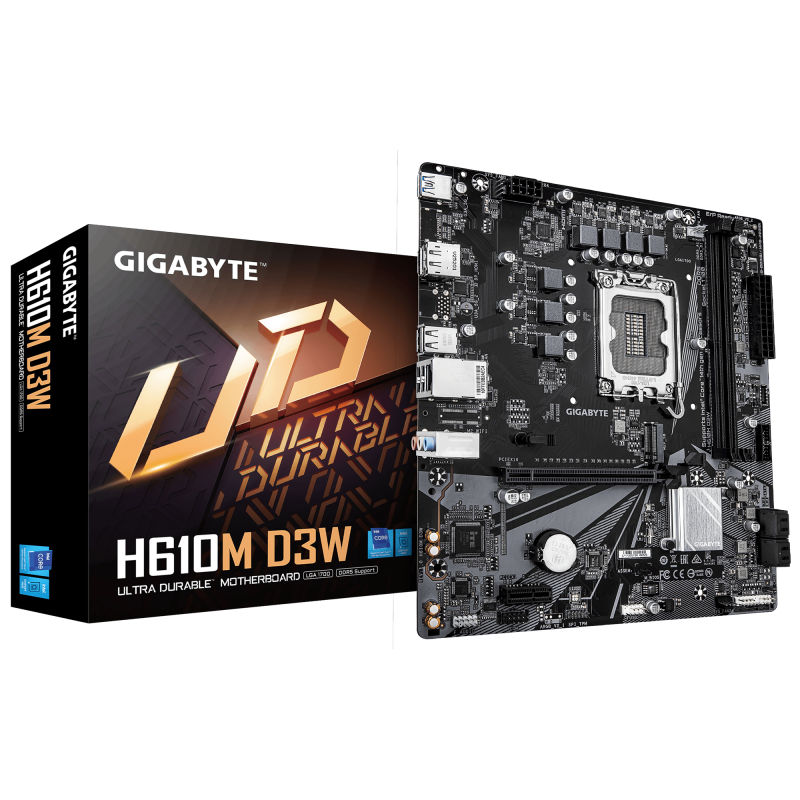

Placa de bază Gigabyte H610M D3W este o soluție fiabilă pentru construirea unui sistem PC performant, ideală pentru utilizatorii care caută stabilitate și eficiență. Proiectată pentru procesoare Intel, această placă de bază oferă suport pentru conectivitate Ethernet, fiind potrivită pentru activități de birou sau multimedia. Cu un design compact și un sistem de răcire pasiv, este o alegere excelentă pentru cei care doresc să își optimizeze spațiul de lucru fără a compromite performanța. Garanția de 3 ani asigură un nivel suplimentar de încredere pentru utilizatorii care investesc în componente de calitate.
Caracteristici
1st M.2 Highest Pci Express Generation:
- 3.0
1st M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Capacity:
- 200 mAh
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Brand:
- GIGABYTE
Bundled Software:
- Norton® Internet Security (OEM version)
Clear Cmos Jumper:
- Yes
Component For:
- PC
Cooling Type:
- Passive
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 220 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 1.2
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdcp Version:
- 2.3
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 3.5 mm
Lan Controller:
- Realtek RTL8111H
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel H610
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 2
Number Of Cpu Fan Connectors:
- 1
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 1
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 5
Onboard-cpu:
- No
Package Depth:
- 265 mm
Package Height:
- 54 mm
Package Weight:
- 821 g
Package Width:
- 265 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
- Gigabyte
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Ram-slots:
- 2
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 5600 MHz
Supported Memory Clock Speeds:
- 4400,4800,5200,5600 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, PCI Express 3.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 742 g
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Recenzii
Nu au fost găsite recenzii
