Descriere

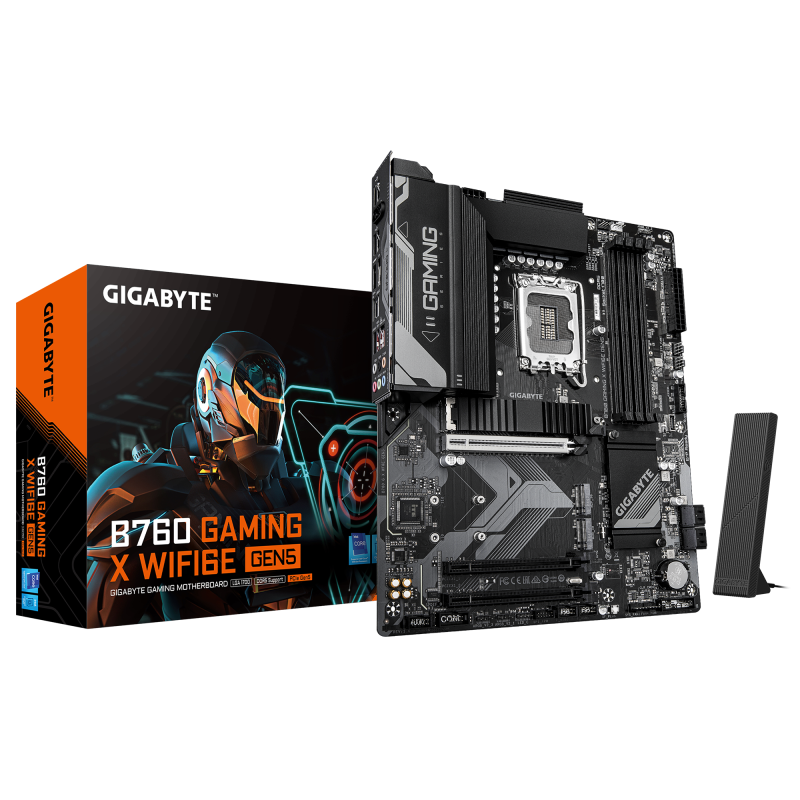

Placa de bază Gigabyte B760 Gaming X WiFi6E Gen5 LGA1700 este soluția ideală pentru gamerii și profesioniștii în căutarea performanței de vârf. Cu suport pentru memorie DDR5 și multiple sloturi PCIe, aceasta permite upgrade-uri rapide și eficiente. Conexiunea WiFi 6E asigură o experiență de gaming fluidă și fără lag, iar multiplele opțiuni de stocare M.2 și SATA oferă flexibilitate maximă. Designul ATX asigură compatibilitate cu majoritatea carcaselor, făcând din această placă un aliat de încredere pentru orice configurație avansată.
Caracteristici
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 22110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.3
Brand:
- GIGABYTE
Bundled Software:
- Norton® Internet Security (OEM version)
Clear Cmos Jumper:
- Yes
Component For:
- PC
Cooling Type:
- Passive
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 1.2
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8125
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2304 pixels
Mb-format:
- ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 7
Number Of Water Pump Connectors:
- 2
Onboard-cpu:
- No
Package Depth:
- 270 mm
Package Height:
- 80 mm
Package Weight:
- 1.8 kg
Package Width:
- 335 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 3.x) Slots:
- 2
Pci Express X16 (gen 5.x) Slots:
- 1
Pci-ex1:
- 0
Pci-ex16:
- 2
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
- Gigabyte
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 5600 MHz
Supported Memory Clock Speeds:
- 4400,4800,5200,5600 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, PCI Express 4.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 6E (802.11ax)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 5
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 1.61 kg
Wi-fi:
- Yes
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Wlan Controller Model:
- Intel Wi-Fi 6E AX210
