Descriere

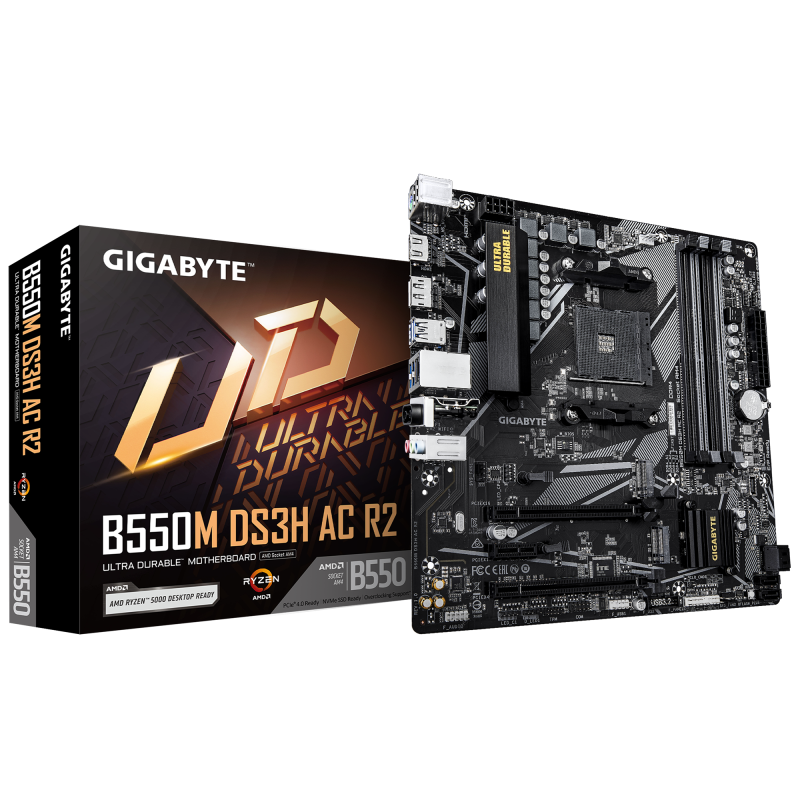

Placa de bază Gigabyte B550M DS3H AC R2 AM4 este o alegere excelentă pentru construcții PC compacte, oferind suport pentru procesoare AMD și până la patru module DDR4. Cu multiple sloturi PCIe, inclusiv un slot PCIe 4.0 x16, și două sloturi M.2, această placă permite extinderea rapidă și eficientă a sistemului. Construcția sa matx facilitează integrarea în carcase mai mici, iar conectivitatea prin DisplayPort și HDMI asigură o experiență vizuală de calitate. Ideală pentru utilizatorii care caută performanță și flexibilitate într-un format compact.
Caracteristici
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 3.0
2nd M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220-VB
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.0
Brand:
- GIGABYTE
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Component For:
- PC
Cooling Type:
- Passive
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0

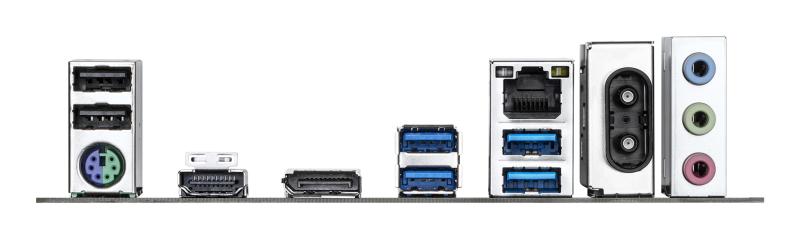

Displayport Version:
- 1.4
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8111H
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 32 GB
Maximum Resolution:
- 5120 x 2880 pixels
Mb-format:
- micro-ATX
Mb-socket:
- AM4
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD B550
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 2
Number Of Cpu Fan Connectors:
- 1
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 5
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Onboard-cpu:
- No
Package Depth:
- 268 mm
Package Height:
- 68 mm
Package Weight:
- 1.07 kg
Package Width:
- 270 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 2
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM4
Producator:
- Gigabyte
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 4733 MHz
Supported Memory Clock Speeds:
- 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported Memory Types:
- DDR4-SDRAM
Supported Processor Sockets:
- Socket AM4
Supported Storage Drive Interfaces:
- M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 5 (802.11ac)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 980 g
Wi-fi:
- Yes
Wi-fi Standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width:
- 244 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Wlan Controller Model:
- Realtek RTL8821CE
