Descriere

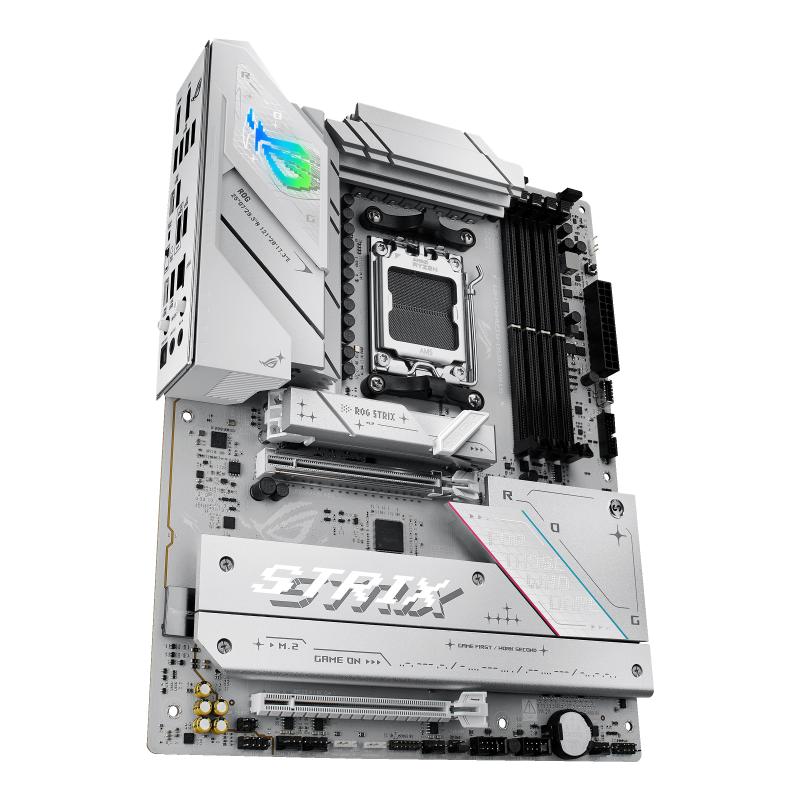

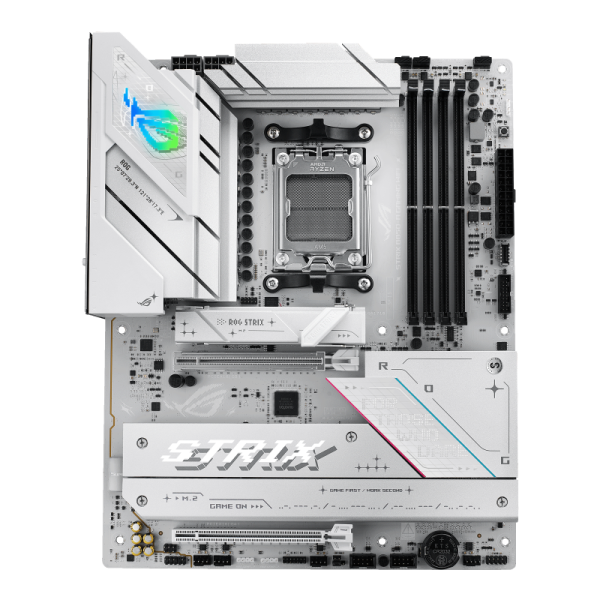

Placa de Baza ASUS ROG STRIX B850-A GAMING WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, ATX
Caracteristici
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 2280
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 2280
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC4080
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.4
Brand:
- ASUS
Cables Included:
- SATA
Clear Cmos Button:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Digital Audio Optical Out:
- 1
Displayport Version:
- 1.4
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Line-in:
- Yes
Maximum Internal Memory:
- 192 GB
Maximum Resolution:
- 7680 x 4320 pixels
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- AMD B850
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 2
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 3
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 2
Number Of Storage Drives Supported:
- 6
Number Of Temperature Sensor Headers:
- 1
Number Of Water Pump Connectors:
- 1
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 273 mm
Package Height:
- 68 mm
Package Weight:
- 2.04 kg
Package Width:
- 353 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
- Asus
Product Colour:
- White
Quick Installation Guide:
- Yes
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8000 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Weight:
- 2.04 kg
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11
