Descriere

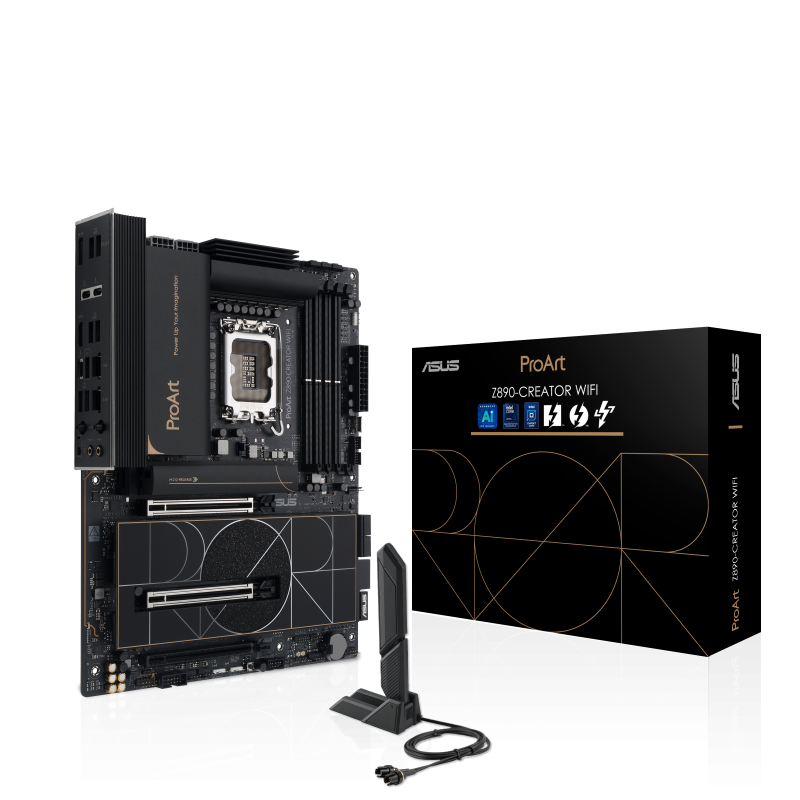

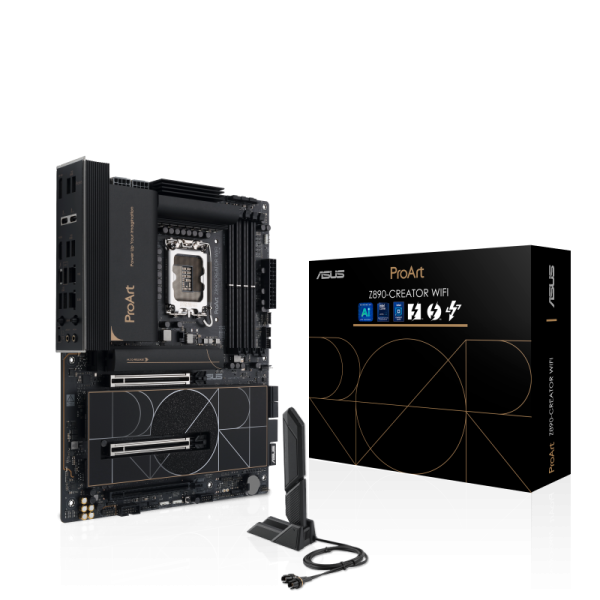

Placa de bază Asus ProArt Z890-Creator WiFi este o alegere excelentă pentru profesioniștii din domeniul creativ, oferind suport pentru procesoare LGA1851 și memorie DDR5. Cu cinci sloturi M.2 și două sloturi PCIe 5.0 x16, aceasta asigură o expansiune rapidă și eficientă pentru stocare și grafică. Conectivitatea este îmbunătățită prin multiple porturi Thunderbolt și HDMI, iar chipsetul Intel Z890 garantează performanțe de top. Ideală pentru utilizatorii care necesită fiabilitate și viteză în proiectele lor.
Caracteristici
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 22110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 2280
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 2280
5th M.2 Highest Pci Express Generation:
- 4.0
5th M.2 Largest Key Size:
- 2280
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220P
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Brand:
- ASUS
Chassis Intrusion Connector:
- Yes
Clear Cmos Button:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Lan:
- Yes
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Line-in:
- Yes
Maximum Internal Memory:
- 192 GB
Maximum Resolution:
- 7680 x 4320 pixels
Mb-format:
- ATX
Mb-socket:
- LGA1851
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Chassis Fan Connectors:
- 5
Number Of Com Connectors:
- 1
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 5
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 3
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 9
Number Of Temperature Sensor Headers:
- 1
Number Of Water Pump Connectors:
- 1
On-board Graphics Card:
- No
Onboard-cpu:
- No
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 2
Pci-ex1:
- 0
Pci-ex16:
- 3
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
- Asus
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 9066 MHz
Supported Memory Clock Speeds:
- 9066 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Ports Quantity:
- 3
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 6
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wifi-ap Antenna Jack:
- 2
Recenzii
Nu au fost găsite recenzii
