Descriere

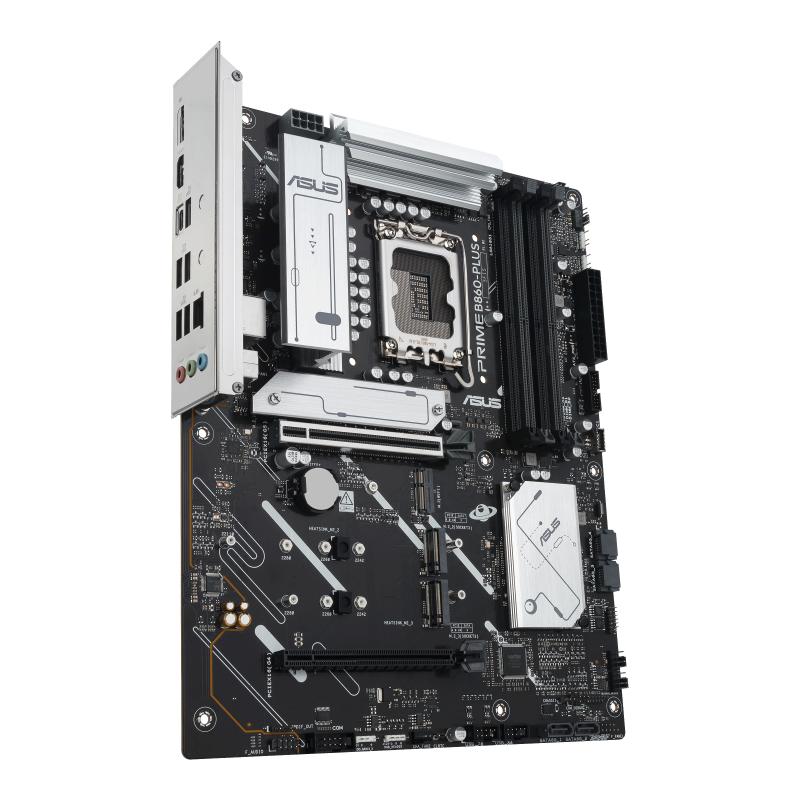

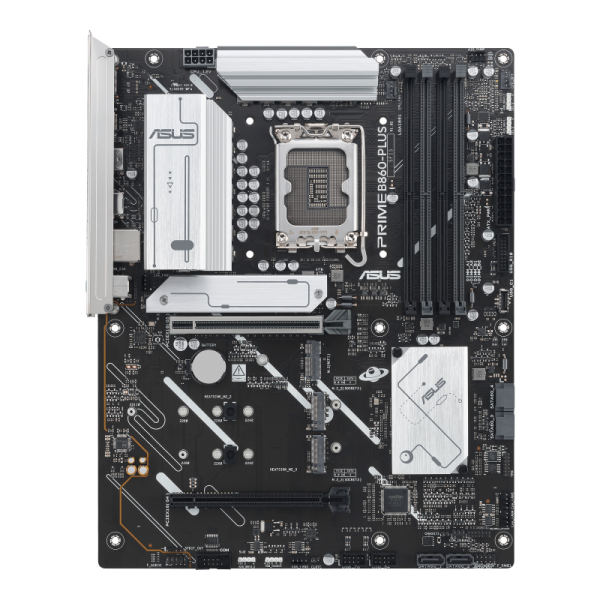

Placa de Baza ASUS PRIME B860-PLUS-CSM LGA1851, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Caracteristici
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Brand:
- ASUS
Chassis Intrusion Connector:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Height:
- 49 mm
Line-in:
- Yes
Maximum Internal Memory:
- 256 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B860
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 4
Number Of Com Connectors:
- 1
Number Of Cpu Fan Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 7
Onboard-cpu:
- No
Package Depth:
- 372 mm
Package Height:
- 302 mm
Package Weight:
- 1.56 kg
Package Width:
- 377 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
- Asus
Product Colour:
- Multicolour
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8666 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Weight:
- 896 g
Wi-fi:
- No
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11
