Descriere

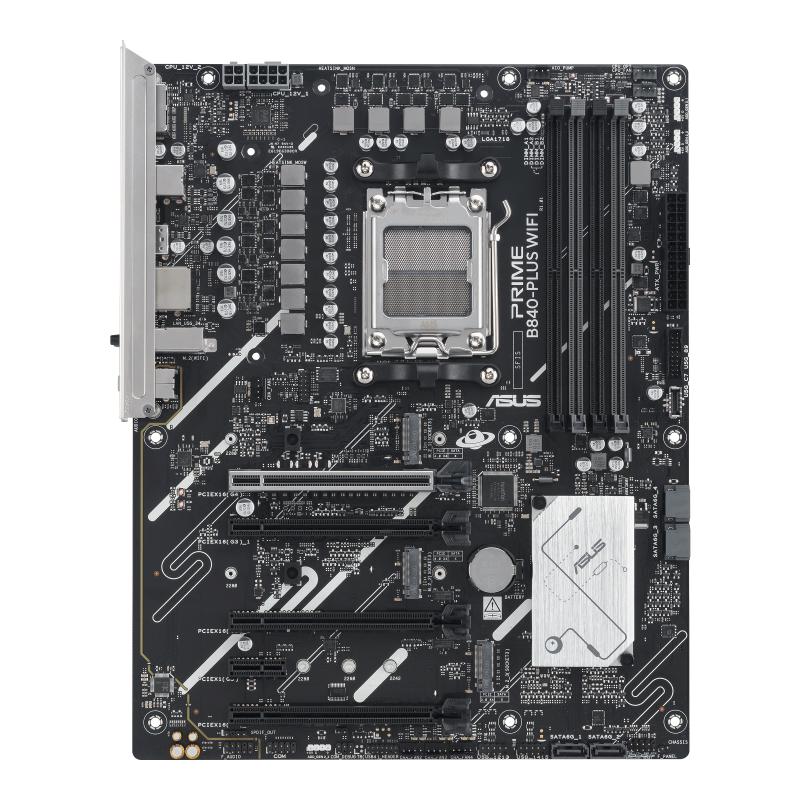

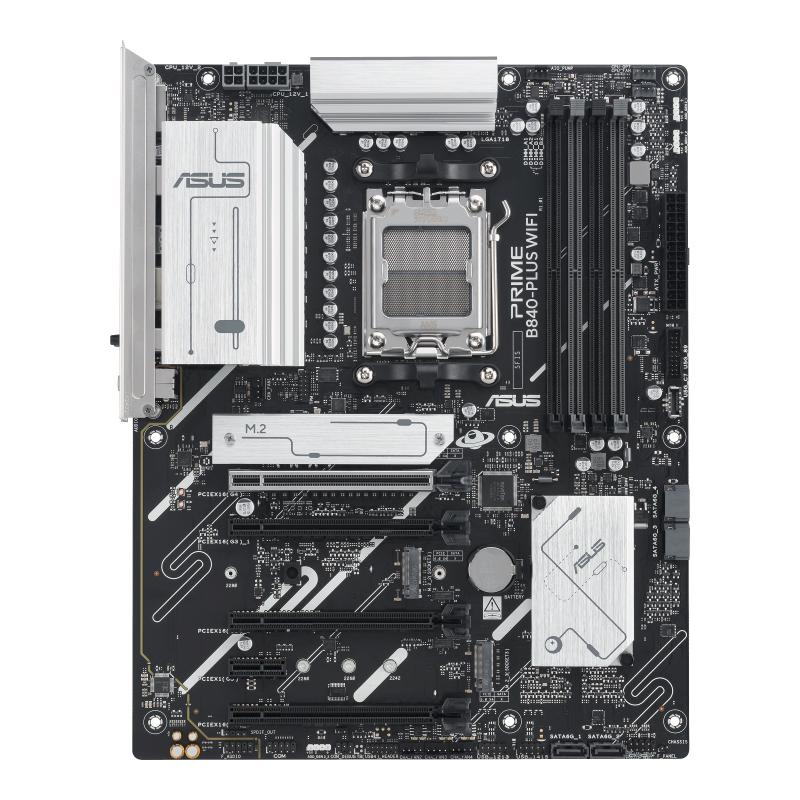

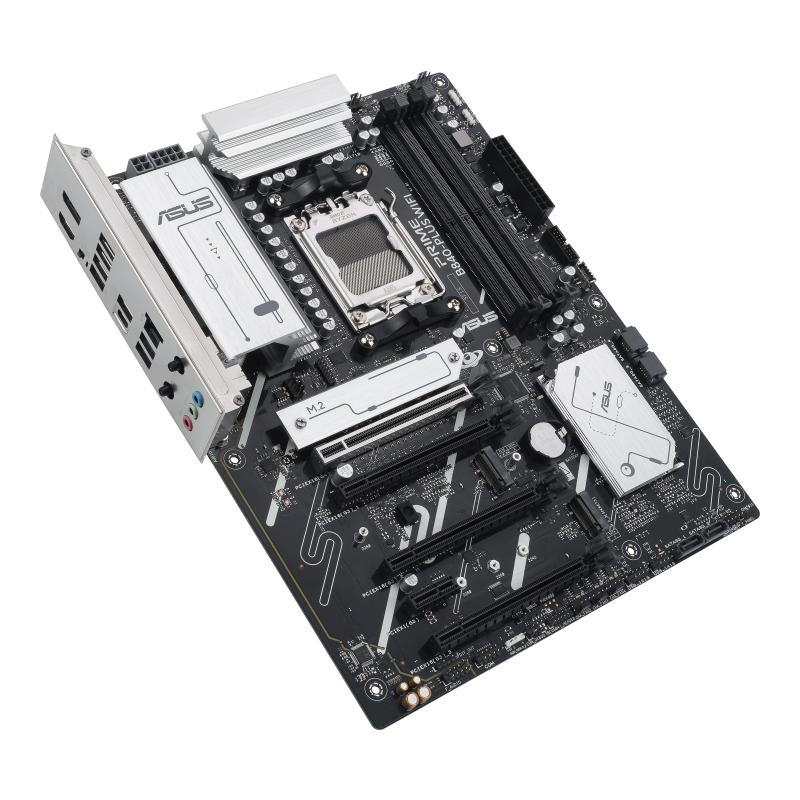

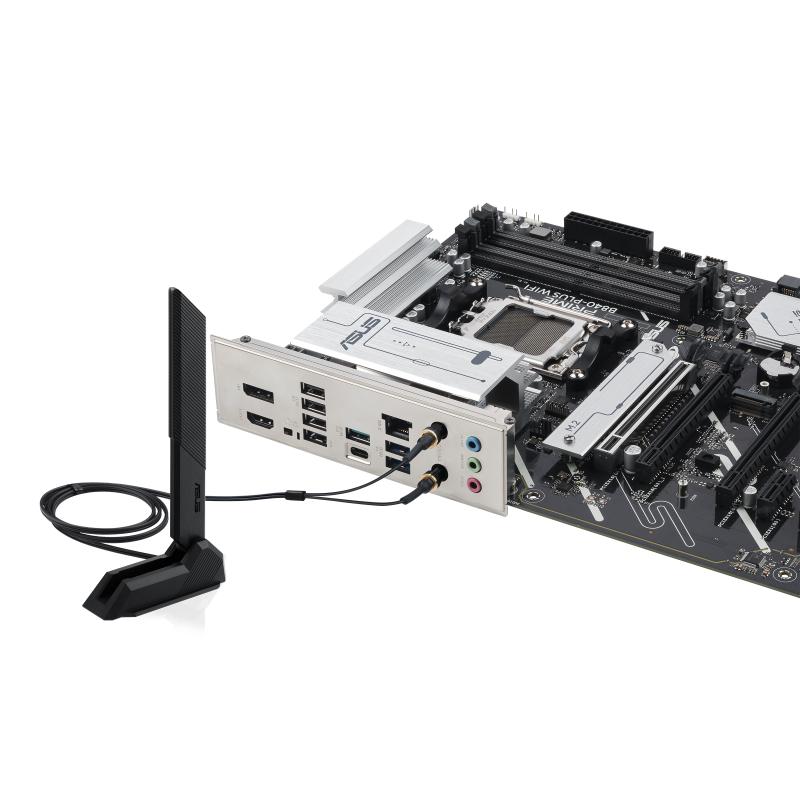

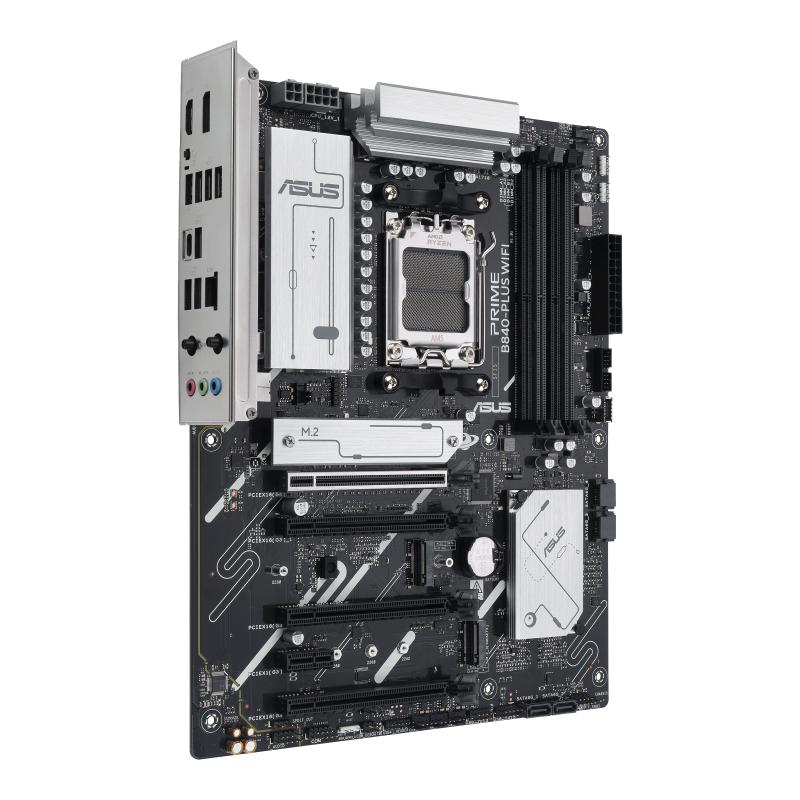

Placa de Baza ASUS PRIME B840 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 3x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX
Caracteristici
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
3rd M.2 Highest Pci Express Generation:
- 3.0
3rd M.2 Largest Key Size:
- 2280
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth:
- Yes
Bluetooth Version:
- 5.3
Brand:
- ASUS
Cables Included:
- SATA
Chassis Intrusion Connector:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Maximum Internal Memory:
- 192 GB
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- AMD B840
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Chassis Fan Connectors:
- 4
Number Of Com Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 7
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 273 mm
Package Height:
- 68 mm
Package Weight:
- 1.26 kg
Package Width:
- 353 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 3.x) Slots:
- 3
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 5
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
- Asus
Product Colour:
- Aluminium, Black
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
S/pdif Out Connector:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Top Wi-fi Standard:
- Wi-Fi 6E (802.11ax)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 6E (802.11ax)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 1
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11
