Descriere

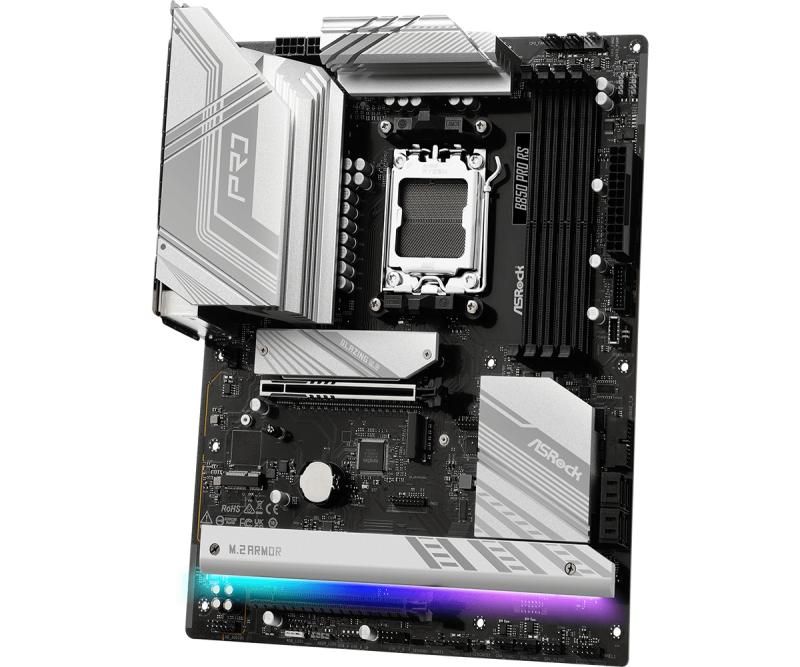

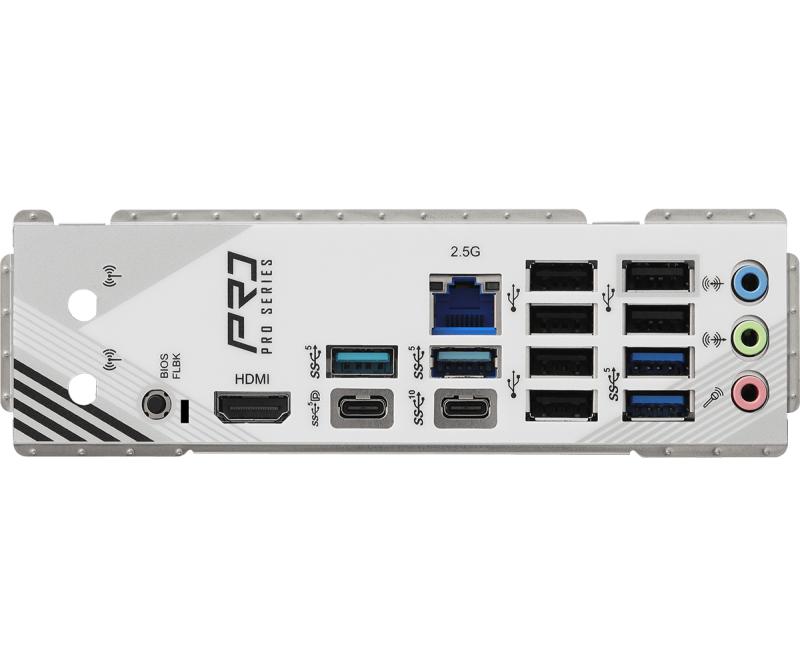

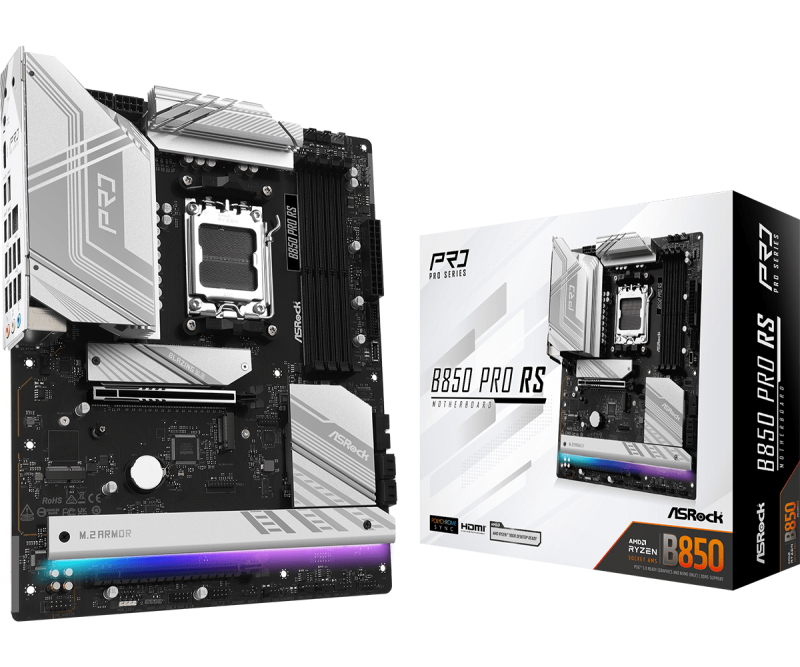

Placa de Baza ASROCK B850 PRO RS AM5, 4x DDR5, 1x HDMI 1x USB3.2, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 2x SATA 6GB/s, ATX
Caracteristici
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Brand:
- ASROCK
Cables Included:
- SATA
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Lan Controller:
- Dragon RTL8125BG
Line-in:
- Yes
Maximum Internal Memory:
- 256 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD B850
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of M.2 (m) Slots:
- 1
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Onboard-cpu:
- No
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
- Asrock
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Types:
- DDR5-SDRAM
Supported Storage Drive Interfaces:
- M.2, SATA III
Tpm Connector:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 6
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2x2 Connectors:
- 1
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
